Check Memory Switch (With Memory Function)

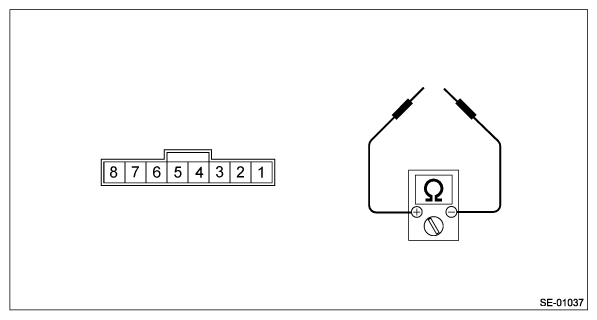

Measure resistance between terminals while operating each switch.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Switch position |
Terminal No. |
Standard |
| Memory 1 |
2 and 3 |
Less than 10 Ω |
| Memory 2 |
2 and 3 |
Less than 10 Ω |
| Set |
3 and 1 |
Less than 10 Ω |
Replace the switch if the inspection result is not within the standard value.
