Check Speaker Output With Line Diag Mode

Turn the ignition switch to ACC.

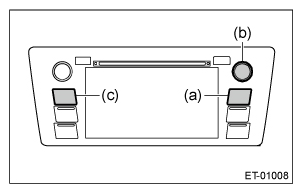

Press the button (b) twice with the button (a) pressed.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Pressing the button (c) for 3 seconds or more, or turning the ignition switch from the OFF to ACC position can exit the Line Diag mode.

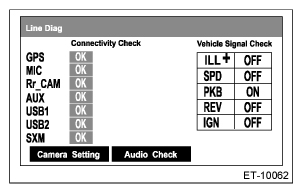

{Line Diag} screen is displayed.

Courtesy of SUBARU OF AMERICA, INC.
Touch {Audio Check} on the {Line Diag} screen.

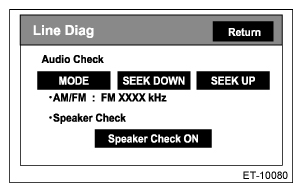

{Audio Check} screen is displayed.

Courtesy of SUBARU OF AMERICA, INC.
Touch the {Speaker Check ON} key of {Speaker Check} to check speaker output.
NOTE:
- The speaker front left → front right → rear right → rear left will sound in order for 2 seconds each.
- The speaker sounds at the maximum volume during speaker check.
- Press the {Return} key to return to the {Line Diag} screen.
