Radio Frequency Range Switch-Over

NOTE:
  • Some items are not displayed according to destination.
  • Displayed only for model with 6.2 inch display.
  1. Turn the ignition switch to ACC.

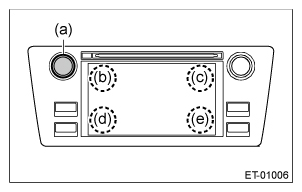

  2. Press the button (a) to display the Audio OFF screen.
  3. Touch the screen in order from (b) to (e).
    G12515511Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Pressing the button (a) or turning the ignition switch from the OFF to ACC position can exit the Line Diag mode.

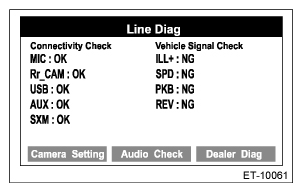

  4. {Line Diag} screen is displayed.
    G12515512Courtesy of SUBARU OF AMERICA, INC.
  5. Touch {Dealer Diag} on the {Line Diag} screen.

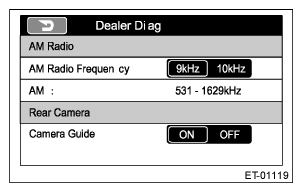

  6. The {Dealer Diag} screen is displayed.
    G12515513Courtesy of SUBARU OF AMERICA, INC.
  7. Touch the {9 kHz} or {10 kHz} key to switch the AM radio frequency range.
    Display key Frequency range
    9 kHz Set the AM frequency range to 531 - 1629 kHz.
    10 kHz Set the AM frequency range to 530 - 1710 kHz.
    NOTE:
    • When the setting is changed, reboot confirmation for frequency switch-over is displayed. Select {OK} to reboot. When {cancel} is pressed, the {Dealer Diag} screen is displayed.
    • The initial settings is at 9 kHz.
