Model With 6.2 Inch Display

  1. Turn the ignition switch to ACC.

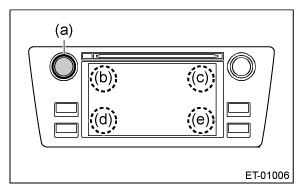

  2. Press the button (a) to display the Audio OFF screen.
  3. Touch the screen in order from (b) to (e).
    G12515508Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Pressing the button (a) or turning the ignition switch from the OFF to ACC position can exit the Line Diag mode.

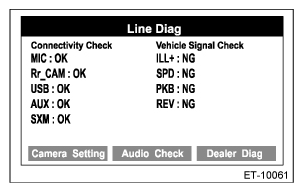

  4. {Line Diag} screen is displayed.
    G12515509Courtesy of SUBARU OF AMERICA, INC.
  5. Touch {Audio Check} on the {Line Diag} screen.

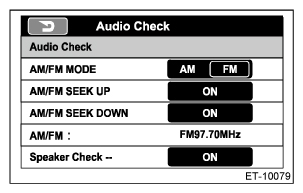

  6. {Audio Check} screen is displayed.
    G12515510Courtesy of SUBARU OF AMERICA, INC.
  7. Touch the {ON} key of {Speaker Check} to check speaker output.
    NOTE:
    • The speaker front left → front right → rear right → rear left will sound in order for 2 seconds each.
    • The speaker sounds at the maximum volume during speaker check.
    • Press the {Return} key to return to the {Line Diag} screen.
