MT Gear Shift Lever: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle.
  3. Remove the center exhaust pipe. Ref. to EXHAUST (H4DO)>Center Exhaust Pipe>REMOVAL .
  4. Remove the center exhaust cover.
    G12475885Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the cable cover plate.
    G12475886Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the MT gear shift cable and MT gear select cable from the gear shift lever assembly.
    CAUTION:
    • Be careful not to deform the cable inner.
    • Do not twist the cable inner excessively.
    • Do not apply excessive load while holding the part (a).
    G12475887Courtesy of SUBARU OF AMERICA, INC.
    1. Pull out down the MT gear shift cable to spread the spring.
    2. Push the MT gear select cable in the direction of arrow, and remove it.

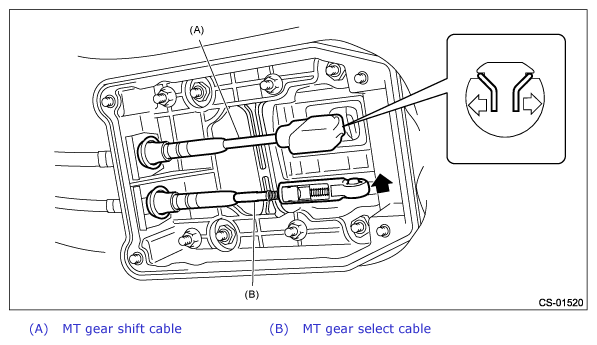

      G12475888Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the cable cover assembly.

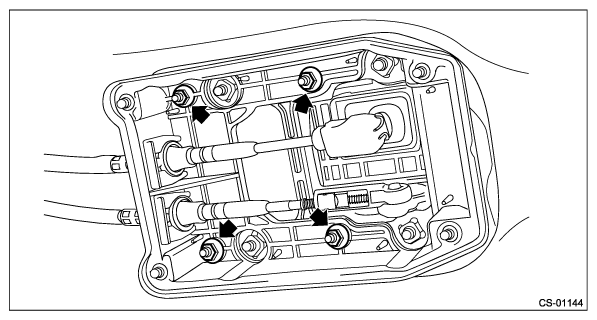

    G12475889Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Remove the ornament panel - consoles LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  10. Remove the gear shift knob and remove the cover - shift lever. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  11. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  12. Remove the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  13. Remove the harness clamp.
  14. Remove the gear shift lever assembly mounting bolt and remove the gear shift lever assembly from the vehicle.

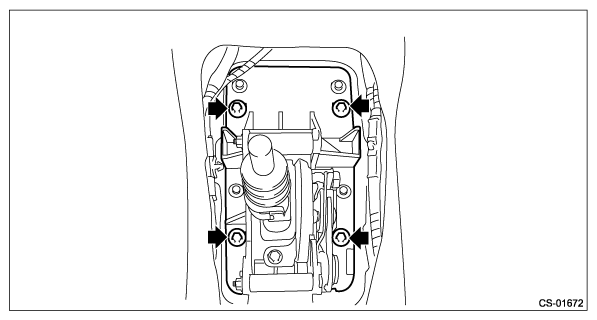

    G12475890Courtesy of SUBARU OF AMERICA, INC.
