Transmission Case: Assembly

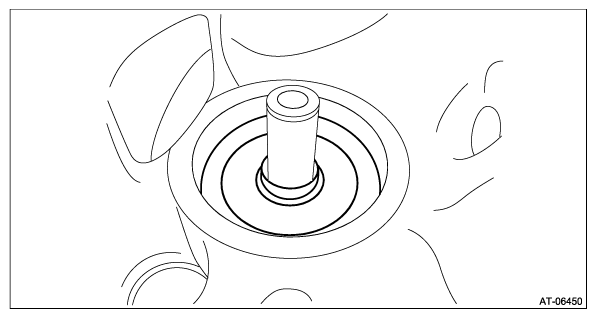

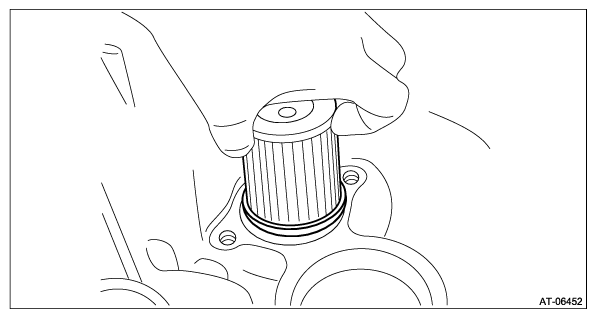

- Face the O-ring side of the CVTF filter to the transmission case side, and install the CVTF filter.NOTE: Apply CVTF to the O-ring of CVTF filter.

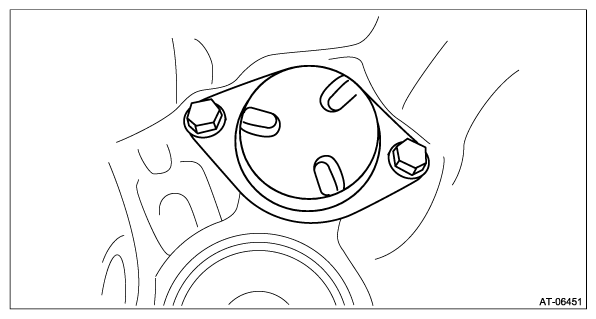

- Install the CVTF filter cover and gasket.NOTE: Use a new gasket.
Tightening torque:
17 N.m (1.7 kgf-m, 12.5 ft-lb)

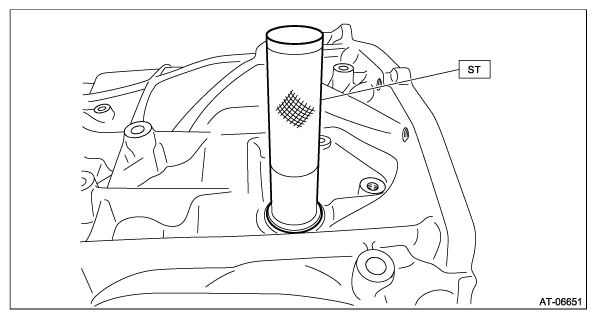

- Using the ST, install the oil seal.NOTE:
- Use a new oil seal.
- Apply CVTF to the oil seal lip and press-fitting surface.
ST 18657AA000 INSTALLER

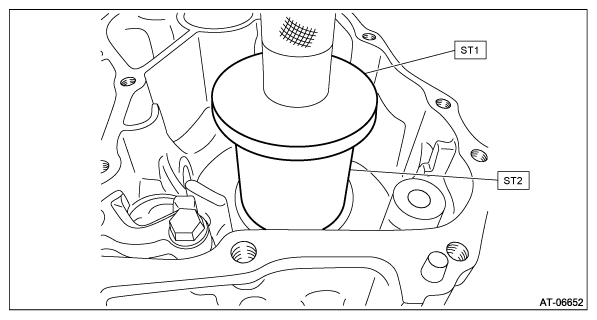

- Using ST1 and ST2, install the ball bearing on the reduction driven gear side.NOTE: Use a new ball bearing.
ST1 398177700 INSTALLER
ST2 28499TC010 PRESS SNAP RING
- Install the oil guide.
- Press-fit the roll pin into the ball bearing on the secondary pulley side.

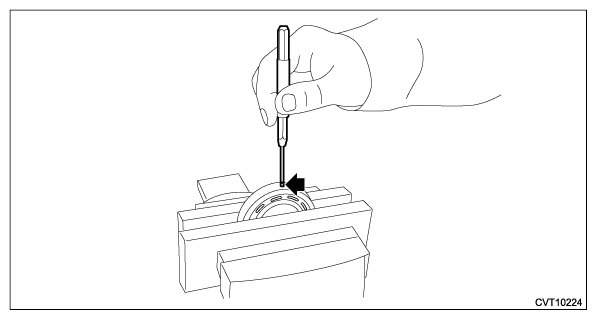

- Hold the roll pin using a knock pin punch, etc. and press-fit with a hummer.NOTE:
- Use a new ball bearing.
- When securing the ball bearing in a vise, place it between wooden blocks to protect the bearing race from damage.

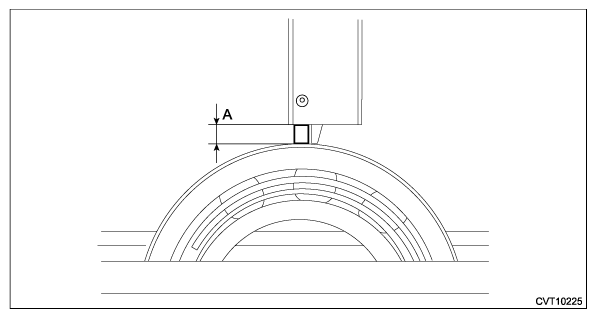

- Measure the height "A" of the roll pin.
Standard (reference):
4.4 mm (0.173 in) or less
- Hold the roll pin using a knock pin punch, etc. and press-fit with a hummer.

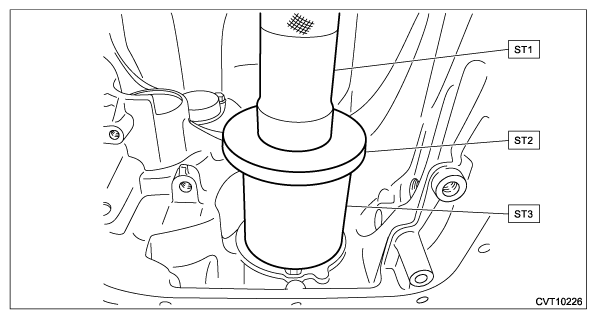

- Using ST1, ST2 and ST3, install the ball bearing on the secondary pulley side.NOTE:

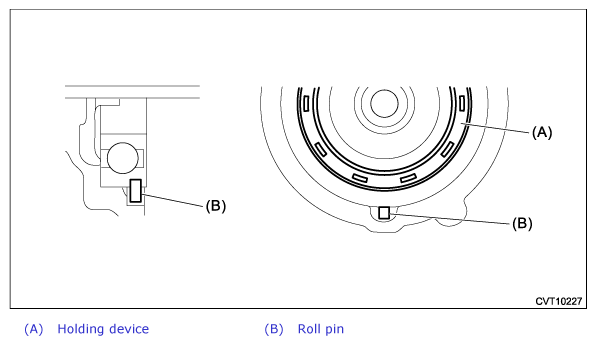

- Align the roll pin position with the cutout of the transmission case.
- Press-fit so that the pin faces forward (while the holding device can be seen from you).
ST1 499277100 BUSHING 1-2 INSTALLER
ST2 398177700 INSTALLER
ST3 28499TC010 PRESS SNAP RING

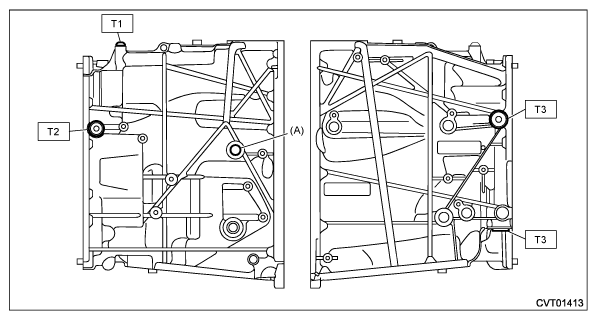

- Install all plugs.NOTE:
- Use new O-rings.
- Apply CVTF to the O-rings.
- For the plug (A), fill the CVTF, and then tighten the plug using a new O-ring.
Tightening torque:
T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)
T2: 22 N.m (2.2 kgf-m, 16.2 ft-lb)
T3: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

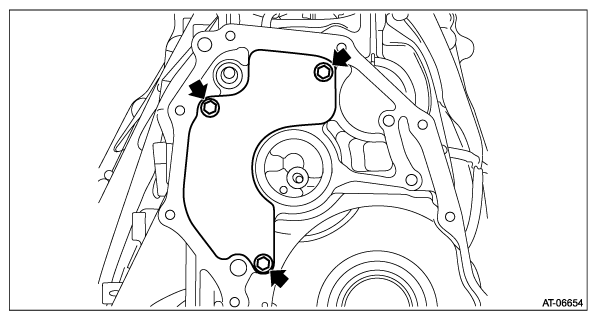

- Install the oil stopper plate.NOTE: Use a new bolt.
Tightening torque:
9 N.m (0.9 kgf-m, 6.6 ft-lb)
