Secondary Speed Sensor: Removal
CAUTION:
- Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
- When secondary speed sensor is removed, CVTF leaks. After installing the secondary speed sensor, adjust the CVTF level.
- Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Lift up the vehicle.
- Remove the under cover front - transmission.

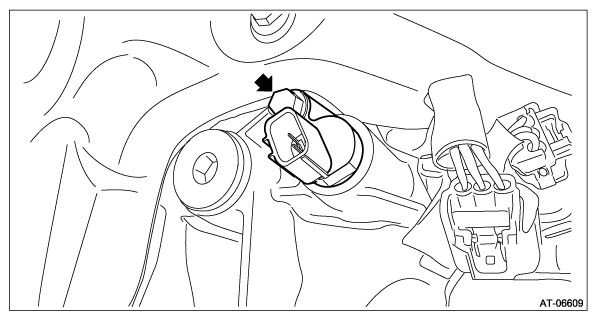

- Remove the harness connector from secondary speed sensor.
- Remove the secondary speed sensor.
