Reverse Brake Assembly: Disassembly

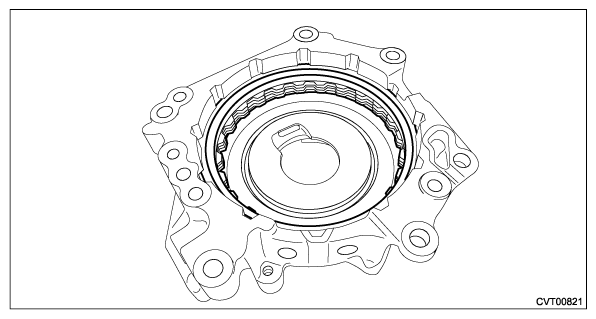

Remove the snap ring.
Remove the retaining plate, drive plate, driven plate and dish plate.

Courtesy of SUBARU OF AMERICA, INC.

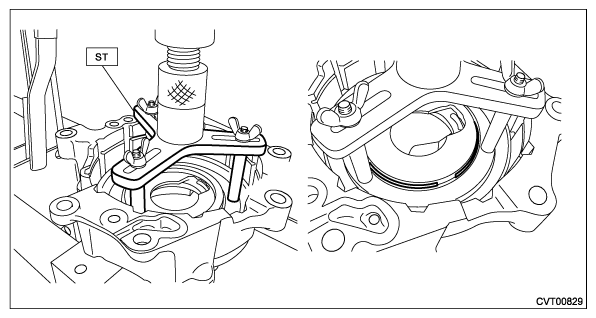

Compress the return spring using the ST to remove the snap ring.
ST 18762AA001 COMPRESSOR SPECIAL TOOL

Courtesy of SUBARU OF AMERICA, INC.

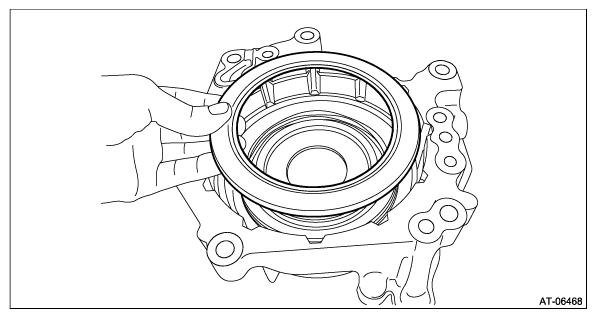

Using the ST, remove the snap ring and spring retainer.

Courtesy of SUBARU OF AMERICA, INC.

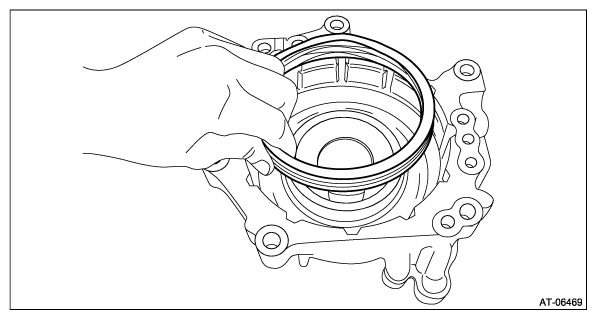

Remove the return spring.

Courtesy of SUBARU OF AMERICA, INC.

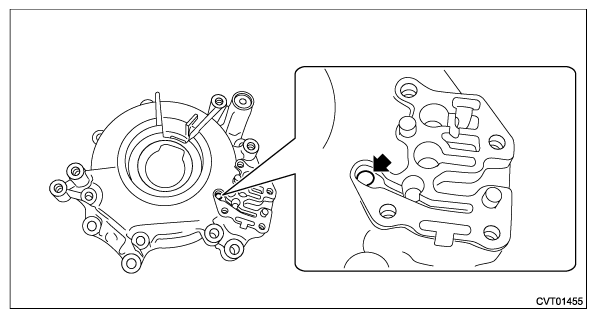

Remove the reverse brake piston by blowing compressed air intermittently from reverse brake housing hole.

Courtesy of SUBARU OF AMERICA, INC.
