Inhibitor Switch: Installation

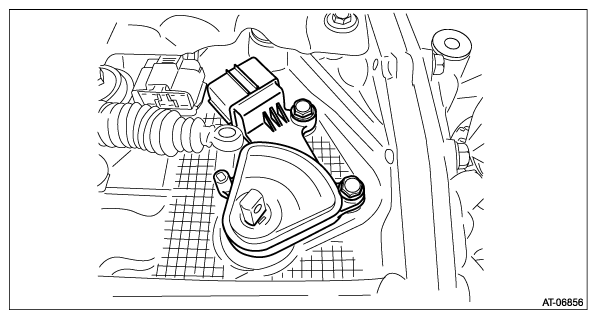

  1. Install the inhibitor switch to the transmission case temporarily.
    G12476135Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the inhibitor harness connector to the inhibitor switch.

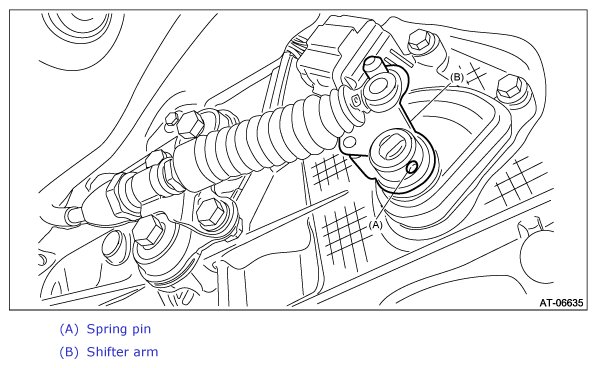

  3. Install the shifter arm and fix with the spring pin.
    NOTE: Use new spring pin.
    G12476136Courtesy of SUBARU OF AMERICA, INC.
  4. Shift the shifter arm to "N" range.

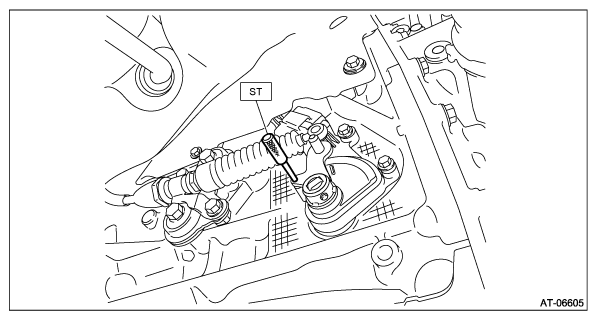

  5. Install the ST vertically in the cutout of shifter arm and the hole of switch body.

    ST 499267300 STOPPER PIN

    G12476137Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the two bolts holding the inhibitor switch.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.7 ft-lb)

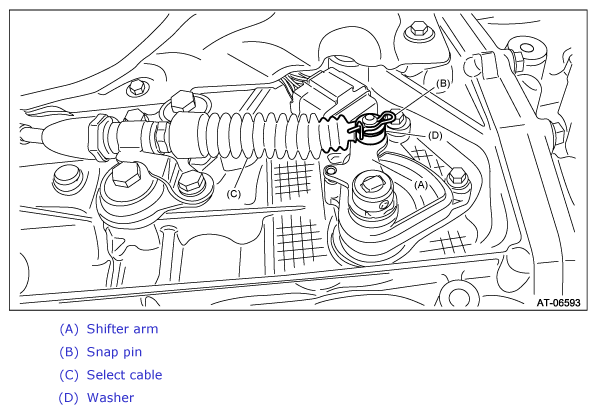

  7. Install the select cable to the shifter arm.
  8. Install the washer and snap pin to the shifter arm.

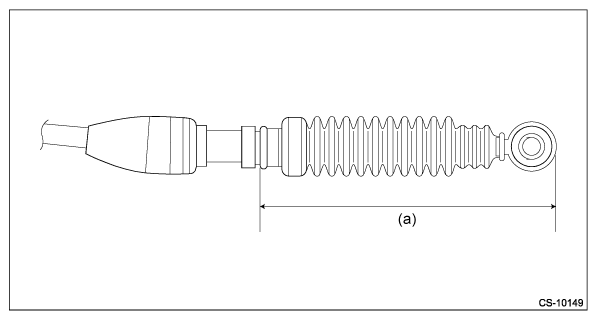

    CAUTION: Do not apply excessive load while holding the part (a).
    G12476138Courtesy of SUBARU OF AMERICA, INC.
    G12476139Courtesy of SUBARU OF AMERICA, INC.
  9. Install the center exhaust pipe. Ref. to EXHAUST (H4DO)>Center Exhaust Pipe>INSTALLATION .
  10. Lower the vehicle.
  11. Connect the battery ground terminal.
  12. Check the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Inhibitor Switch>INSPECTION .
