Differential Case Assembly

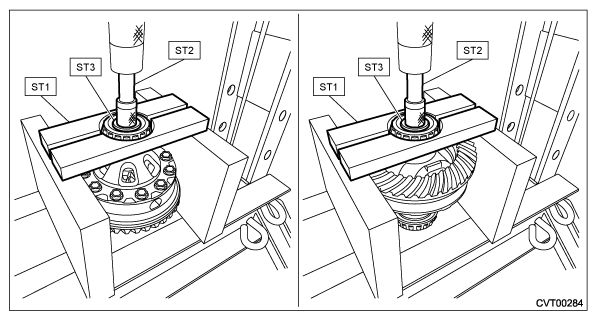

  1. Remove the taper roller bearing using the ST.

    ST1 498077000 REMOVER

    ST2 899864100 REMOVER

    ST3 398497701 SEAT

    G12476506Courtesy of SUBARU OF AMERICA, INC.

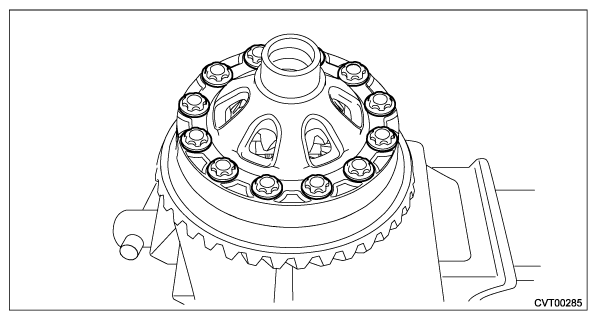

  2. Remove the hypoid driven gear mounting bolt using the ST.

    ST 18270KA020 SOCKET (E20)

    G12476507Courtesy of SUBARU OF AMERICA, INC.

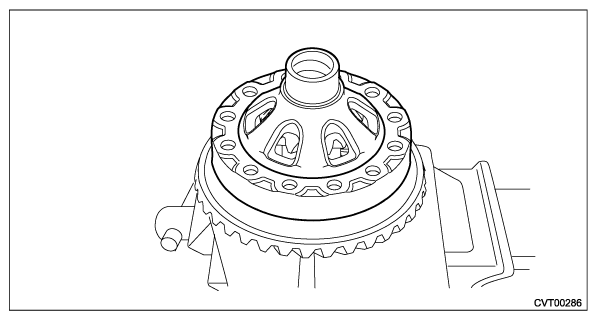

  3. Remove the differential case (LH).
    G12476508Courtesy of SUBARU OF AMERICA, INC.

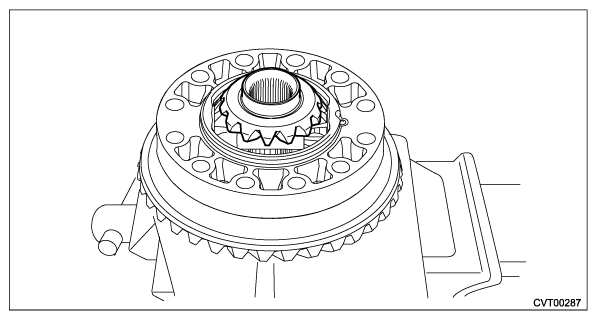

  4. Remove the differential bevel gear and washer from differential case.
    G12476509Courtesy of SUBARU OF AMERICA, INC.

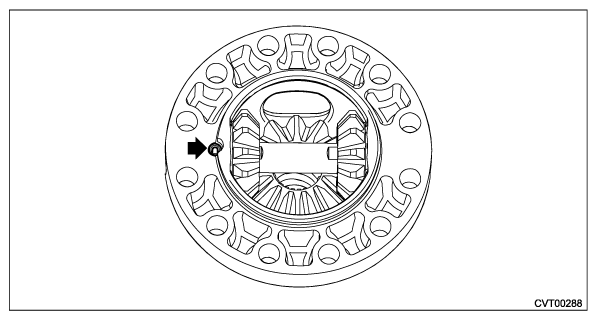

  5. Remove the straight pin.
    G12476510Courtesy of SUBARU OF AMERICA, INC.

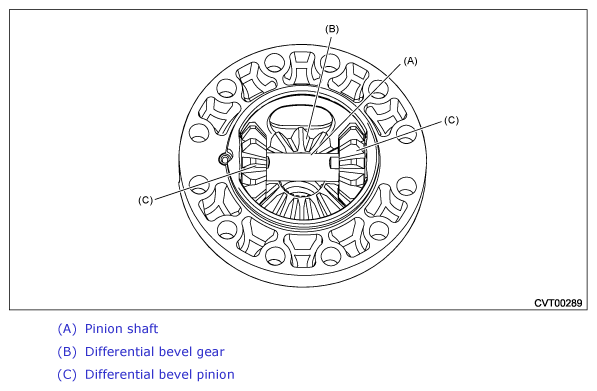

  6. Remove the pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.
    G12476511Courtesy of SUBARU OF AMERICA, INC.
