Drive Plate: Installation

  1. Temporarily install the drive plate and reinforcement drive plate.
    NOTE: Align the knock pin hole of the crankshaft position sensor plate to the knock pin of the crankshaft to secure the knock pin.

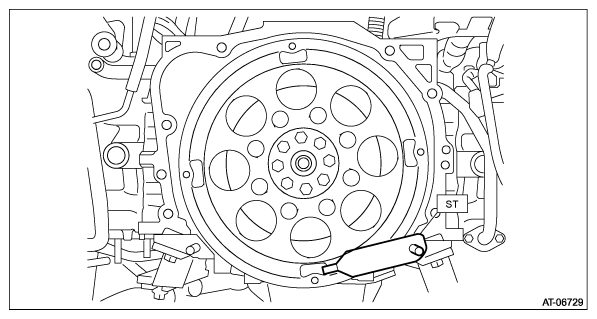

  2. Set the ST.
    NOTE: Set the ST to the drive plate referring to the illustration.

    ST 498497300 CRANKSHAFT STOPPER

    G12476237Courtesy of SUBARU OF AMERICA, INC.
  3. Tighten the drive plate mounting bolt in two stages.
    1. Tighten the drive plate mounting bolt.

      Tightening torque:

      30 N.m (3.1 kgf-m, 22.1 ft-lb)

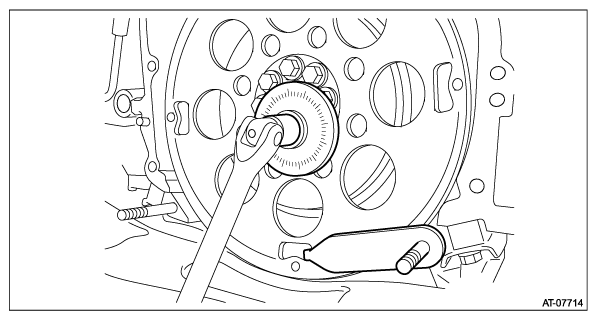

    2. While checking the tightening angle with the angle gauge, tighten the drive plate mounting bolts to the specified angle.

      Tightening angle:

      30° - 35°

      G12476238Courtesy of SUBARU OF AMERICA, INC.
  4. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>INSTALLATION .
