Control Valve Body: Removal

CAUTION:
  • Directly after the vehicle has been running or the engine has been idling for a long time, the CVTF is hot. Be careful not to burn yourself.
  • Be careful not to spill CVTF on the exhaust pipe to prevent it from emitting smoke or causing a fire. If the CVTF adheres, wipe it off completely.
  • Always clean the engine compartment before removal.
NOTE: The control valve body is replaced as an assembly only, because it is a non-disassembly part.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the air intake boot assembly. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>REMOVAL .

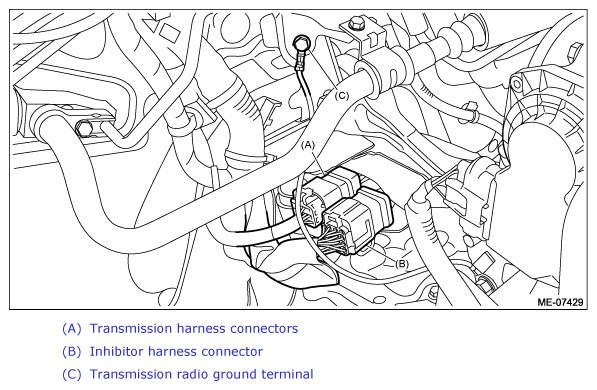

  3. Disconnect the following connectors.
    • Transmission harness connectors
    • Inhibitor harness connector
    • Transmission radio ground terminal
      G12476158Courtesy of SUBARU OF AMERICA, INC.

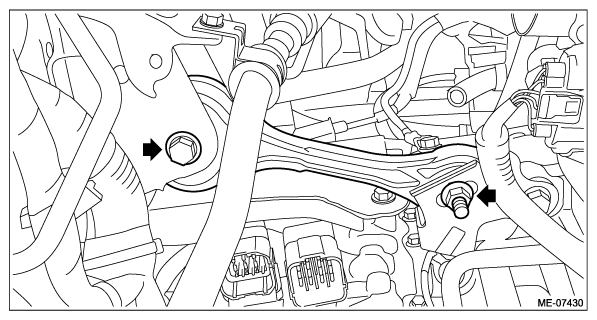

  4. Remove the pitching stopper.
    G12476159Courtesy of SUBARU OF AMERICA, INC.

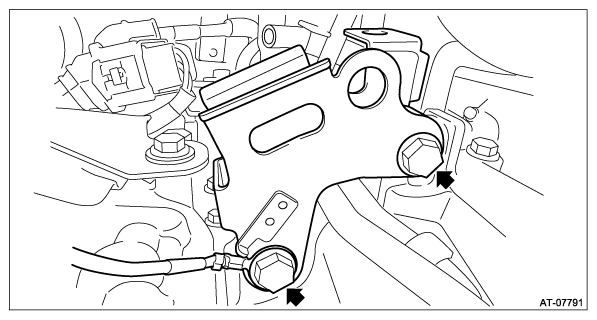

  5. Remove the air breather hose from the pitching stopper bracket, and then remove the pitching stopper bracket and transmission radio ground cord.
    G12476160Courtesy of SUBARU OF AMERICA, INC.

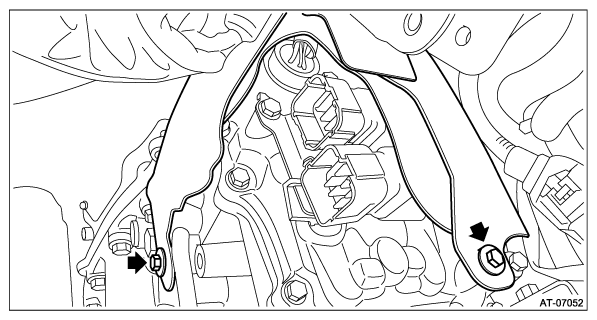

  6. Remove the transmission case cover.
    G12476161Courtesy of SUBARU OF AMERICA, INC.

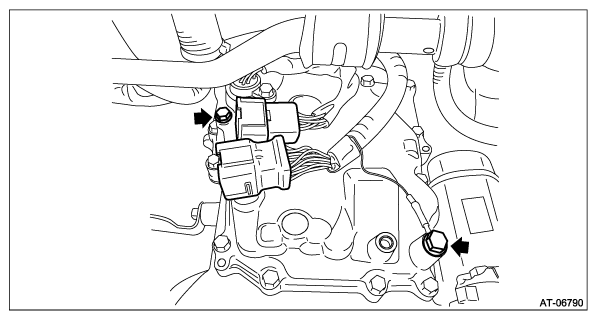

  7. Remove the transmission harness stay and ground terminal.
    G12476162Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the transmission harness connector from the harness stay.
  9. Remove the throttle body, and move it aside so that it will not interfere with the removal of the control valve. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Throttle Body>REMOVAL .
    NOTE: Do not remove the preheater hose.
  10. Clean the transmission exterior.

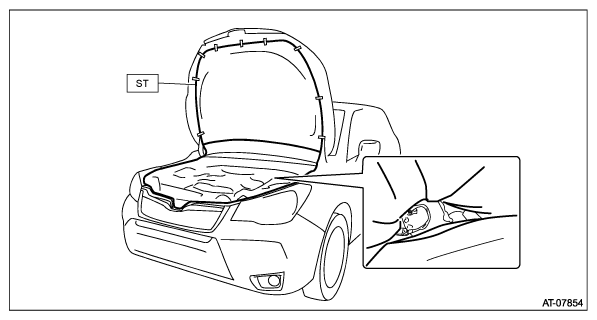

  11. Fix the ST with tape, and set the ST to the vehicle.
    NOTE: When replacing the control valve body, the sheet is included in the control valve body for repairs.

    ST 18761AA010 SHEET SPECIAL TOOL

    G12476163Courtesy of SUBARU OF AMERICA, INC.

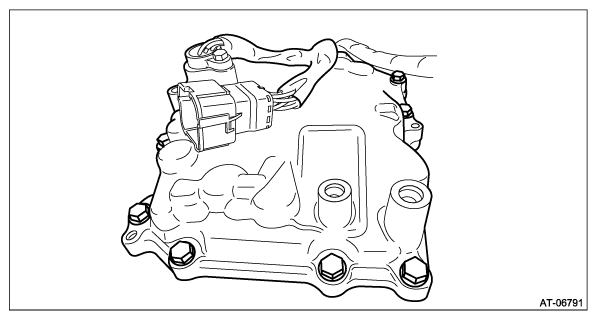

  12. Remove the valve cover and gasket.
    G12476164Courtesy of SUBARU OF AMERICA, INC.
  13. Disconnect the harness connector from the control valve body.

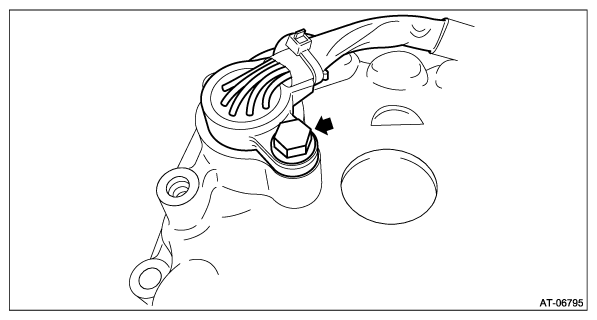

  14. Remove the transmission harness from the valve cover.
    G12476165Courtesy of SUBARU OF AMERICA, INC.

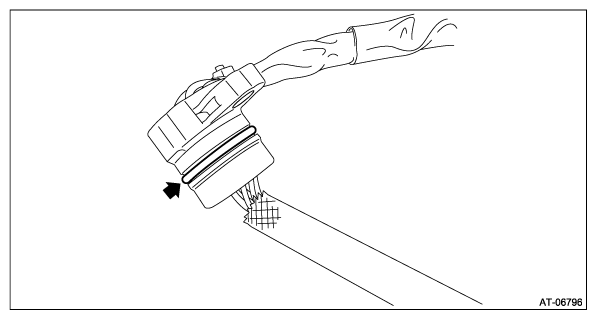

  15. Remove the O-ring from the transmission harness.
    G12476166Courtesy of SUBARU OF AMERICA, INC.

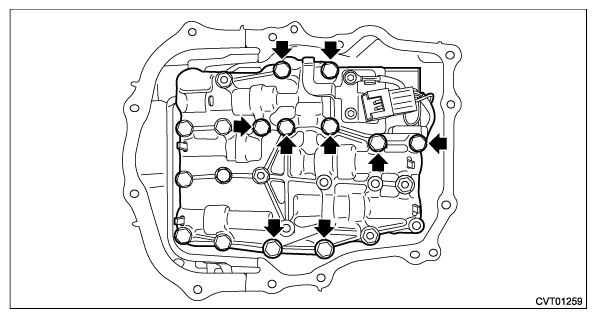

  16. Remove the control valve body.
    G12476167Courtesy of SUBARU OF AMERICA, INC.

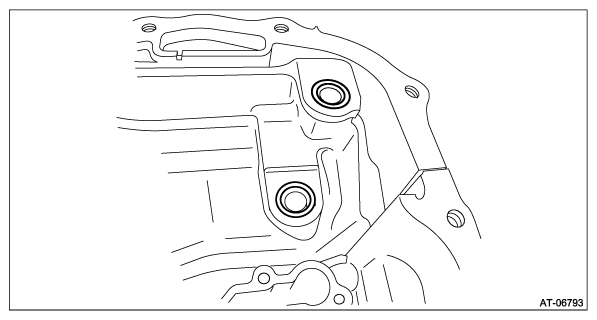

  17. Remove the O-ring from the transmission.
    G12476168Courtesy of SUBARU OF AMERICA, INC.
