Control Valve Body: Inspection
- Check each part for damage or dust.

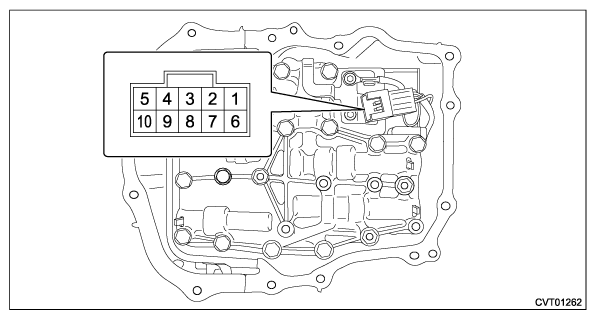

- Measure the resistance of each solenoid, sensor and ground wire.NOTE: Measurement should be performed at a temperature of 20°C (68°F).
- Solenoid
Solenoid Terminal No. Standard Primary UP solenoid No. 2 - Control valve body Approx. 10 - 13.5 Ω Secondary solenoid No. 3 - Control valve body Approx. 5 - 7 Ω F & R clutch solenoid No. 4 - Control valve body Approx. 4 - 6 Ω Primary DOWN solenoid No. 7 - Control valve body Approx. 10 - 13.5 Ω Lock-up duty solenoid No. 9 - Control valve body Approx. 10 - 13.5 Ω AWD solenoid No. 10 - Control valve body Approx. 2 - 4.5 Ω - Oil temperature sensor
Sensor Terminal No. Standard At 20°C (68°F) Oil temperature sensor No. 1 - No. 6 Approx. 2.5 kΩ - Transmission ground
Terminal No. Standard No. 8 - Control valve body Less than 1 Ω
