Oil Pressure Switch: Installation

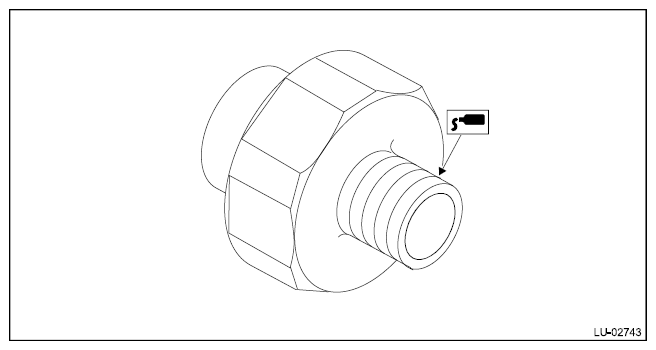

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

Courtesy of SUBARU OF AMERICA, INC.

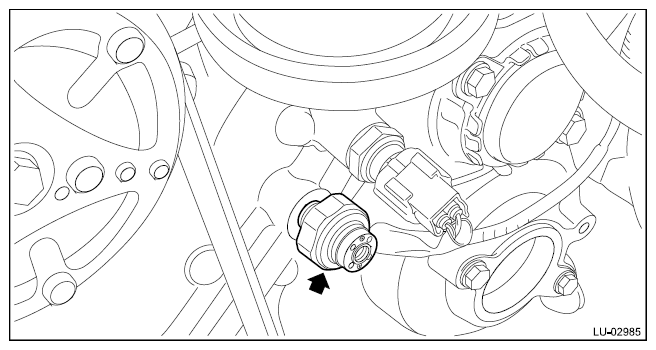

Install the oil pressure switch to the chain cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

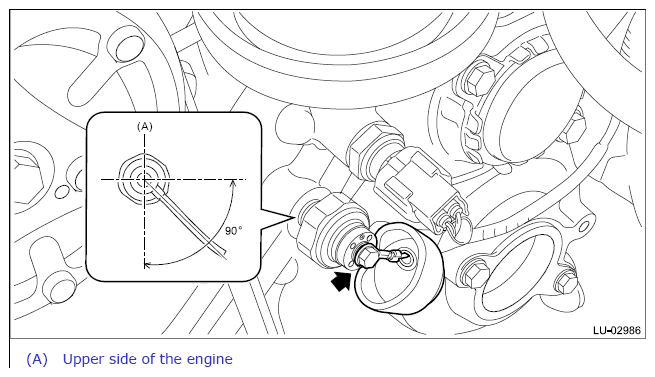

Connect the terminal to the oil pressure switch.
NOTE: The oil pressure switch harness must be tightened within the range of a 90° angle as shown below.

Tightening torque:

1.5 N.m (0.2 kgf-m, 1.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

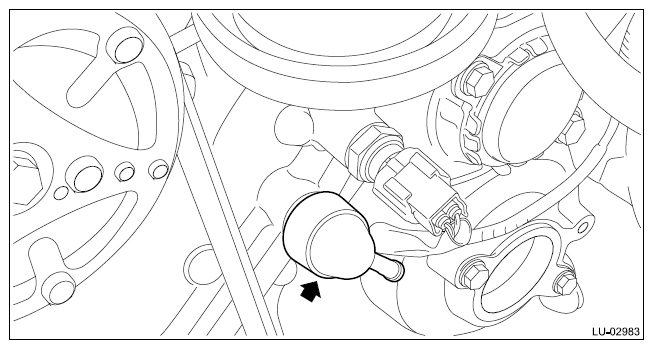

Attach the rubber cap.

Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERY .
