Rear Gate Lock

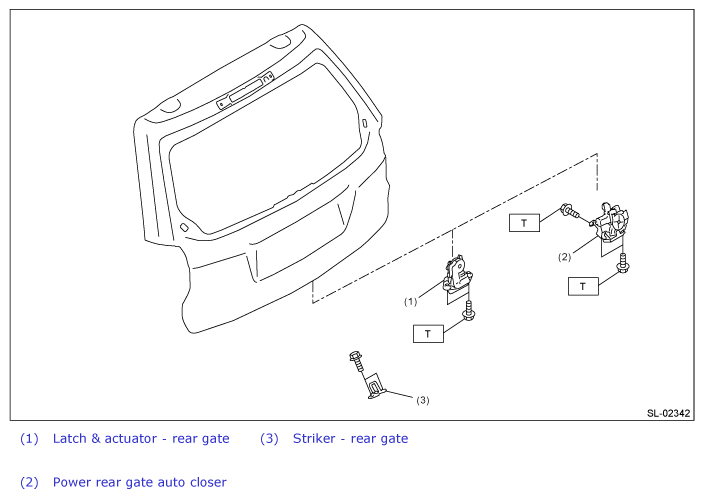

Fig 1: Rear Gate Lock Components

G12515767

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.55, 18.4)
