Master Cylinder: Inspection

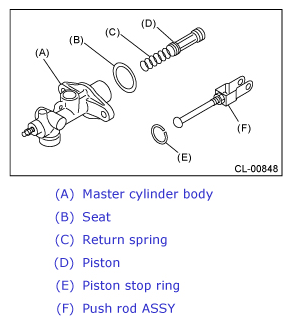

If any damage, deformation, wear, swelling, rust or other faults are found on the cylinder, piston, push rod, nipple, return spring, bleeder screw, seat or hose, replace the faulty part.

G12515381Courtesy of SUBARU OF AMERICA, INC.
