RH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Remove the air cleaner case (rear). Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>REMOVAL .
  3. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    G12508690Courtesy of SUBARU OF AMERICA, INC.

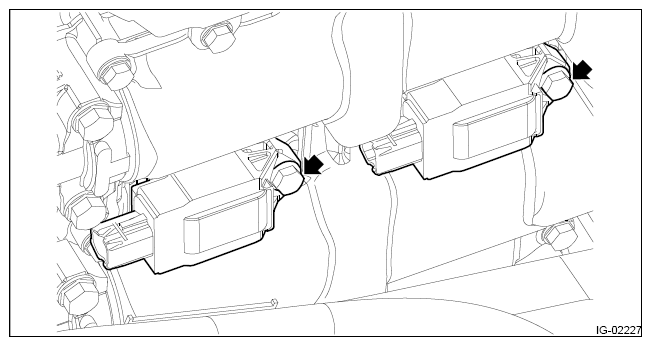

  4. Remove the ignition coil.
    G12508691Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spark plug with a spark plug socket.
