LH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .

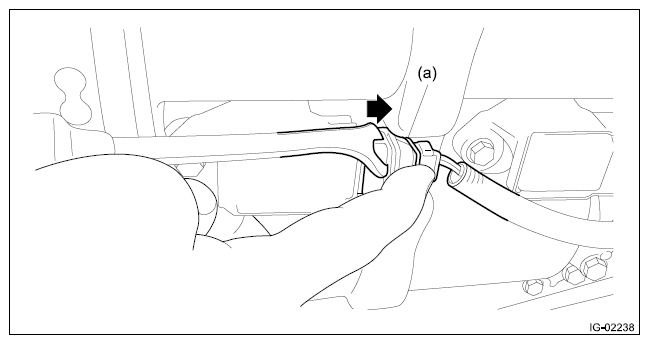

  2. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    G12508692Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the ignition coil.
    G12508693Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plug with a spark plug socket.
