Front Crossmember Support Plate: Removal

  1. Lift up the vehicle.
  2. Remove the under cover COMPL - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the under cover front - transmission. (Non-turbo model)

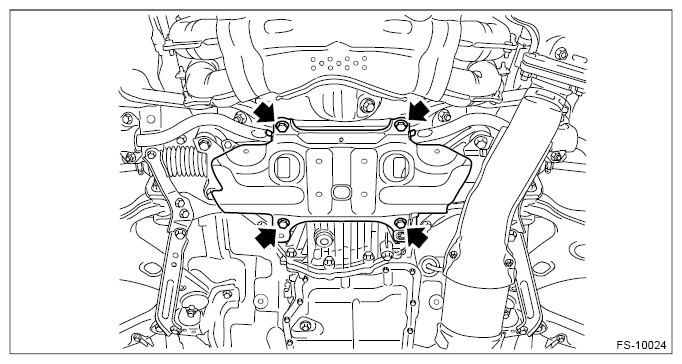

  4. Remove the bolt, and remove the front crossmember support.
    G12513069Courtesy of SUBARU OF AMERICA, INC.
