Airbag Control Module

CAUTION: Do not reuse mounting bolts and nuts.

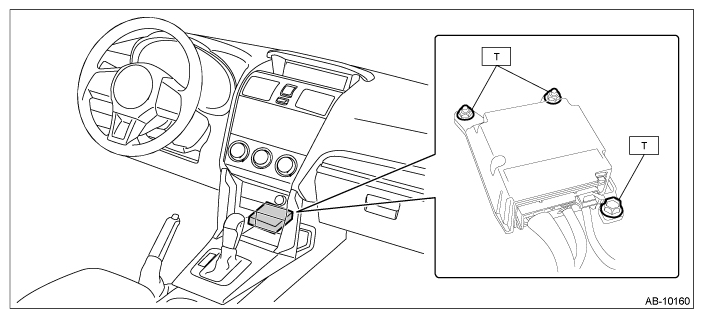

Fig 1: Airbag Control Module Mounting Bolts And Nuts
G12508276Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.55, 18.4)
