Transaxle (Diagnostics): Electrical Component Location: Location: Sensor

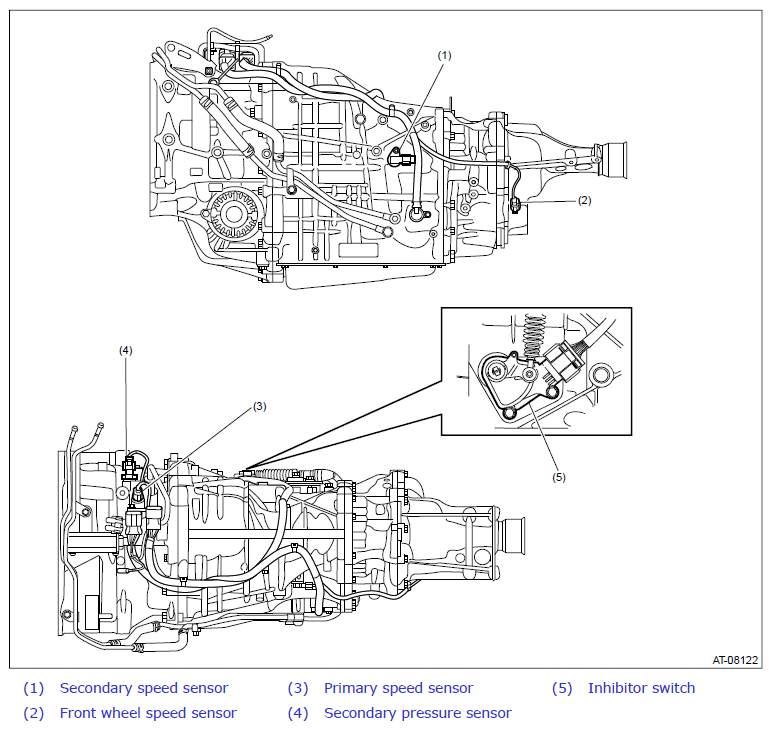

Non-turbo model
Courtesy of SUBARU OF AMERICA, INC.

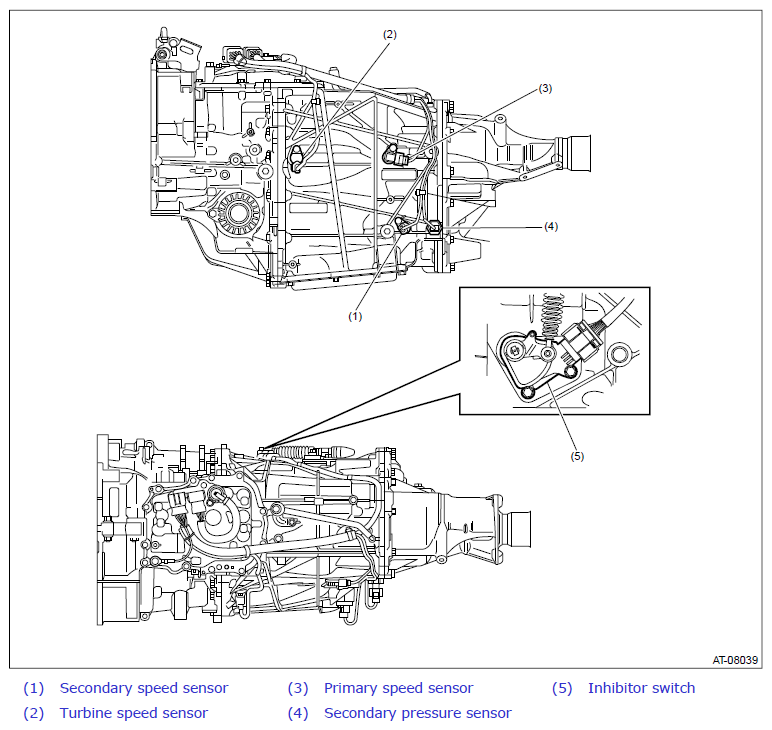

Turbo model
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
