Check Switch Unit

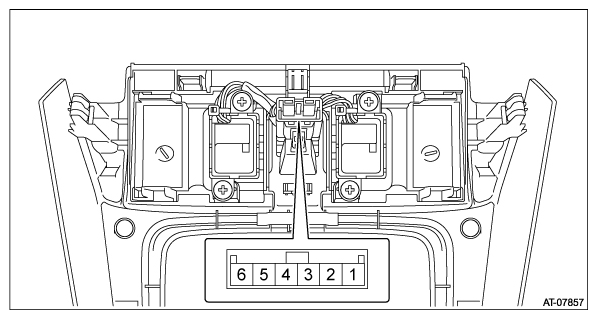

Measure the resistance between harness connector terminals of the X mode switch.
| - |
Terminal No. |
Standard |
| OFF (when measured without operating the switch) |
No. 4 - No. 5 |
1 MΩ or more |
| ON (when measured with the switch held down) |
Less than 1 Ω |
