Transmission Control Module (TCM): Removal

  1. Disconnect the ground cable from battery.

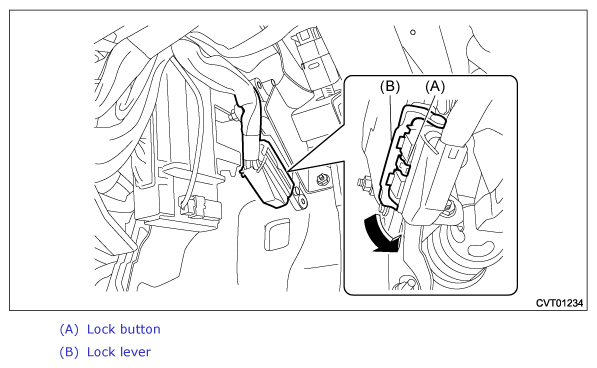

  2. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.
    G12476749Courtesy of SUBARU OF AMERICA, INC.

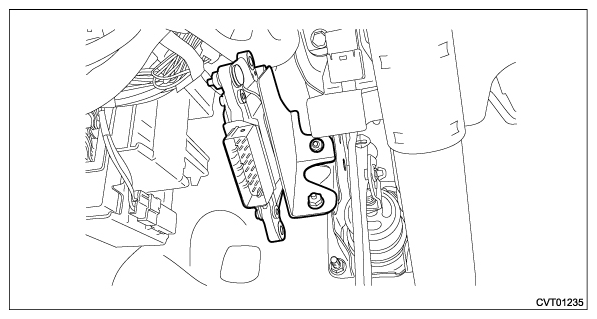

  3. Remove the TCM.
    G12476750Courtesy of SUBARU OF AMERICA, INC.

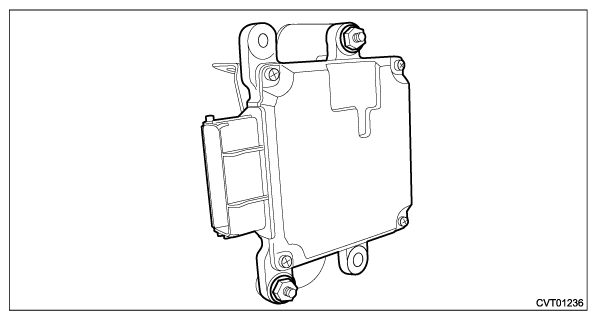

  4. Remove the TCM from the bracket.
    G12476751Courtesy of SUBARU OF AMERICA, INC.
