Torque Converter Assembly: Removal

  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>REMOVAL .

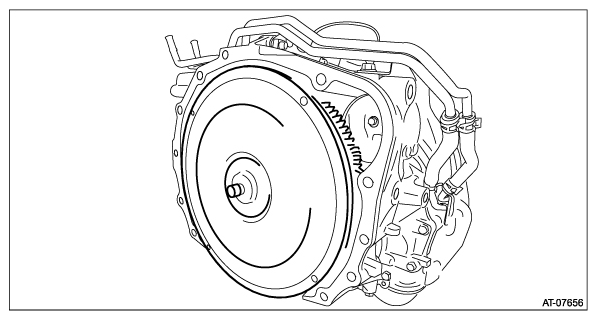

  2. Pull out the torque converter assembly horizontally.
    CAUTION: Do not scratch the inside of engaging parts.
    G12476772Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring from the front reduction drive gear.
