Secondary Speed Sensor: Removal

CAUTION: Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
  1. Remove the transmission from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>REMOVAL .

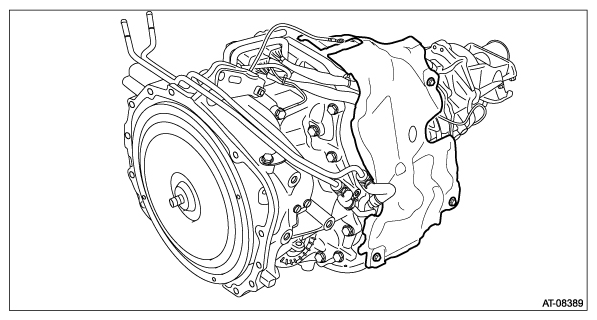

  2. Remove the transmission cover on the transmission upper side.
    G12476711Courtesy of SUBARU OF AMERICA, INC.

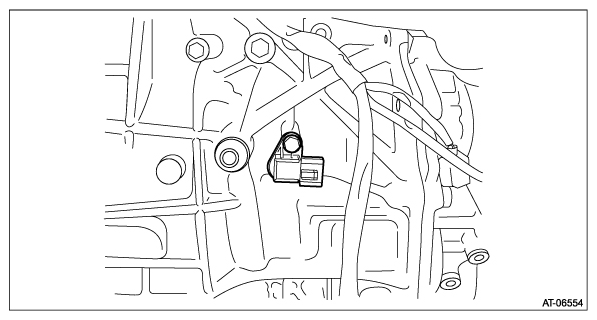

  3. Remove the secondary speed sensor harness connector.
  4. Remove the secondary speed sensor.
    G12476712Courtesy of SUBARU OF AMERICA, INC.
