Reduction Driven Gear: Assembly

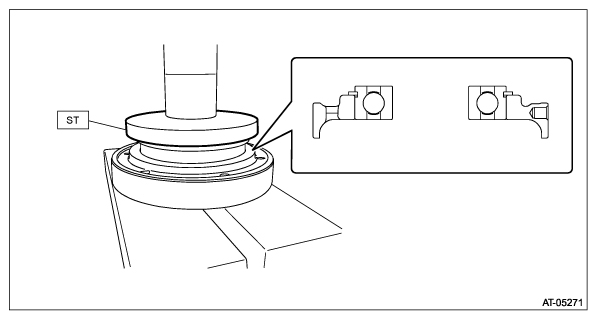

  1. Using the ST, install the ball bearing to bearing retainer.

    ST 398177700 INSTALLER

    NOTE:
    • Use a new ball bearing.
    • Make sure to install the ball bearing in the right direction.
    • Apply CVTF to the press-fitting area.
    G12476889Courtesy of SUBARU OF AMERICA, INC.
  2. Install the snap ring.

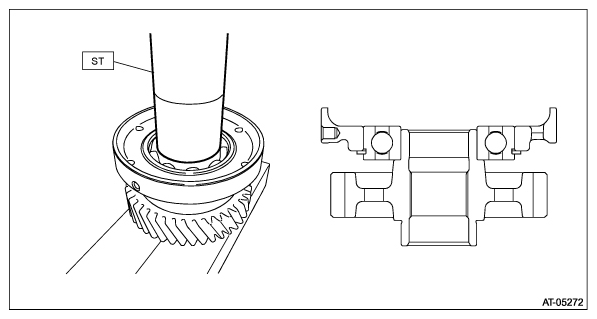

  3. Using the ST, install the reduction driven gear.

    ST 499277200 INSTALLER

    G12476890Courtesy of SUBARU OF AMERICA, INC.
