Primary Speed Sensor: Removal

CAUTION: Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.
  1. Disconnect the ground cable from battery.
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
  3. Clean the transmission exterior.

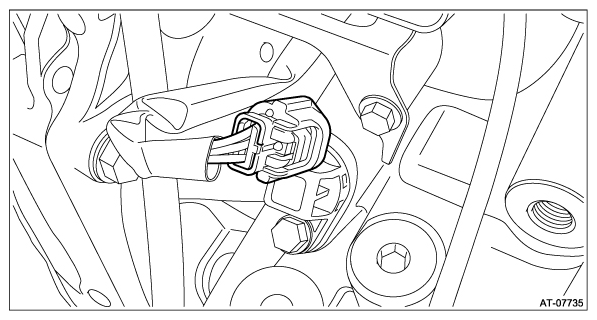

  4. Remove the primary speed sensor harness connector.
    G12476715Courtesy of SUBARU OF AMERICA, INC.

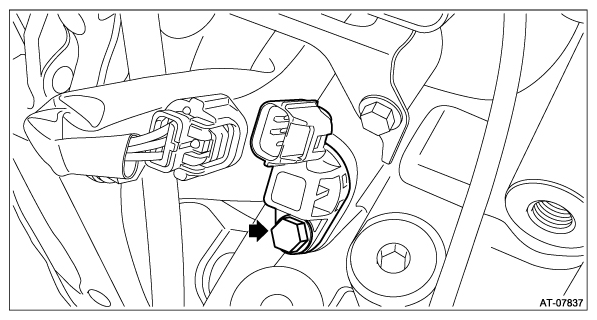

  5. Remove the primary speed sensor and the spacer.
    G12476716Courtesy of SUBARU OF AMERICA, INC.
