Oil Pump Chain: Installation

  1. Clean the mating surface of oil pump chain cover and converter case cover.

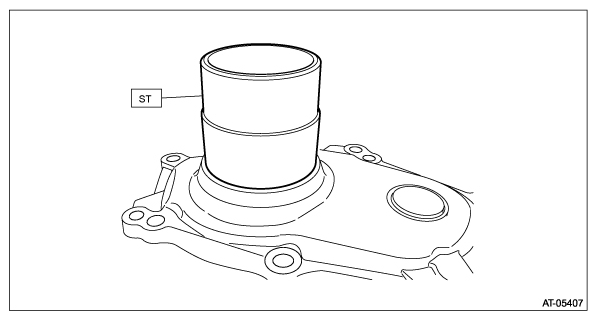

  2. Using the ST, install the oil seal.

    ST 499755602 PRESS SNAP RING

    G12477029Courtesy of SUBARU OF AMERICA, INC.

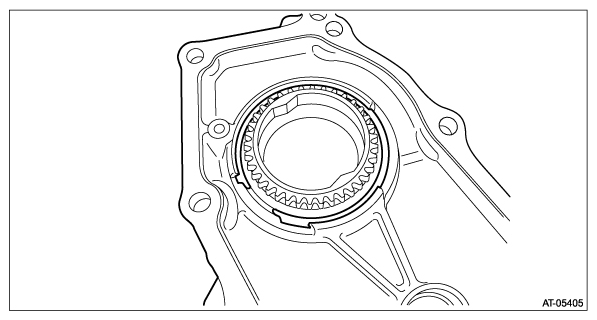

  3. Install the drive sprocket and install the snap ring.
    G12477030Courtesy of SUBARU OF AMERICA, INC.
  4. Place the oil pump chain on drive sprocket.

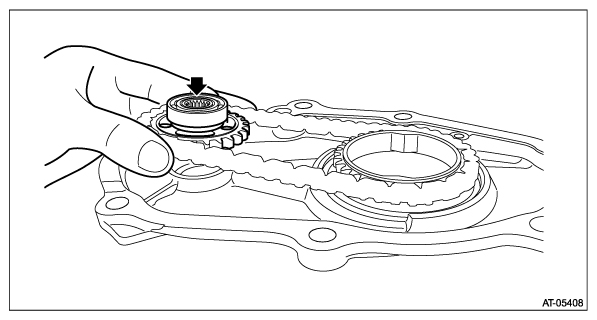

  5. Place the oil pump chain on driven sprocket and install the driven sprocket to oil pump chain cover.
    G12477031Courtesy of SUBARU OF AMERICA, INC.

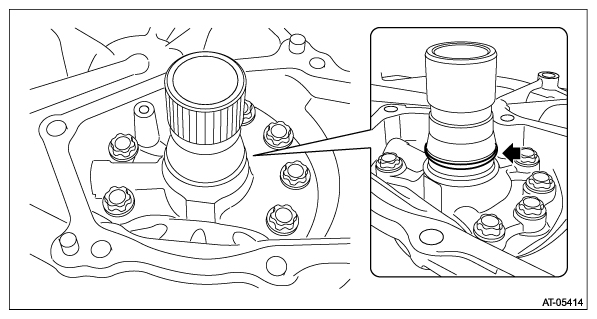

  6. Install the seal ring to center support COMPL.
    NOTE:
    • Use new seal rings.
    • Apply CVTF to the seal rings.
    G12477032Courtesy of SUBARU OF AMERICA, INC.
  7. Apply liquid gasket seamlessly to the mating surface of oil pump chain cover.

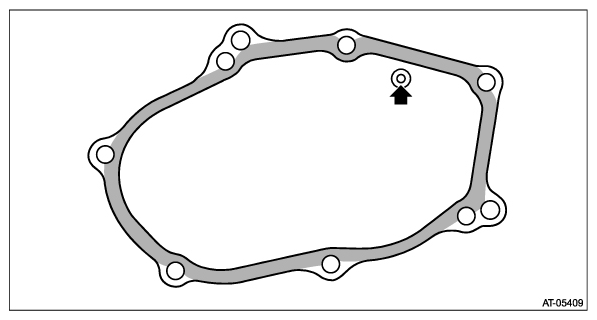

    CAUTION: Do not apply liquid gasket at the arrowed hole.

    Liquid gasket:

    THREE BOND 1215B or equivalent

    G12477033Courtesy of SUBARU OF AMERICA, INC.
  8. Install the oil pump chain cover.

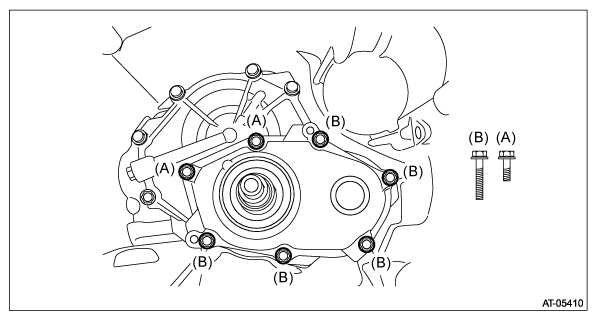

    NOTE: There are two types of bolt.

    Tightening torque:

    24 N.m (2.4 kgf-m, 17.7 ft-lb)

    G12477034Courtesy of SUBARU OF AMERICA, INC.
  9. Install the torque converter assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Torque Converter Assembly>INSTALLATION .
  10. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>INSTALLATION .
