Intermediate Case: Disassembly

  1. Remove the parking support.
  2. Remove the CVTF filler plug.
  3. Remove all plugs from intermediate case.

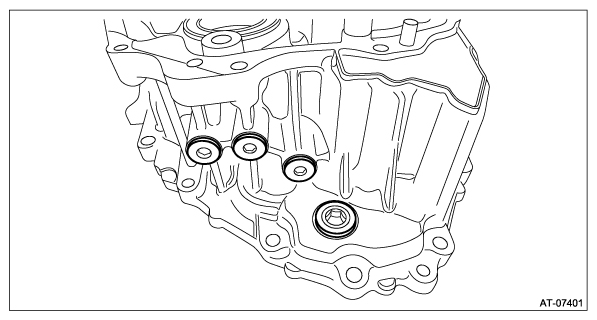

    G12476825Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the reverse brake assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Reverse Brake Assembly>DISASSEMBLY .
