Inhibitor Switch: Installation

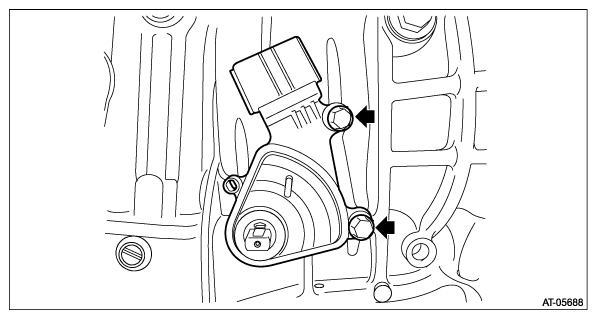

  1. Temporarily install the inhibitor switch.
    G12476706Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the inhibitor harness connector to the inhibitor switch.

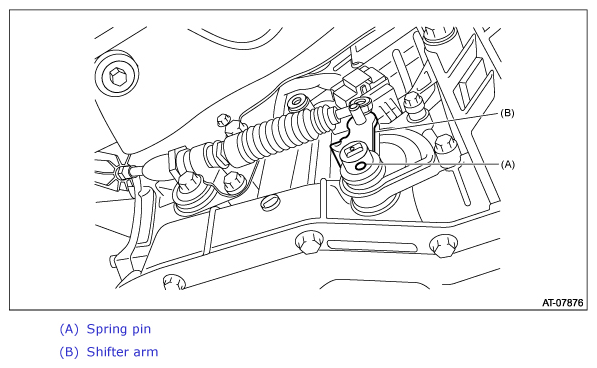

  3. Install the shifter arm and fix with the spring pin.
    NOTE: Use new spring pin.
    G12476707Courtesy of SUBARU OF AMERICA, INC.
  4. Shift the shifter arm to "N" range.

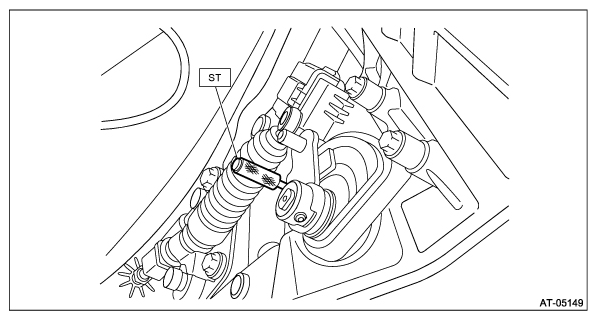

  5. Install the ST vertically in the cutout of shifter arm and the hole of switch body.

    ST 499267300 STOPPER PIN

    G12476708Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the two bolts holding the inhibitor switch.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.7 ft-lb)

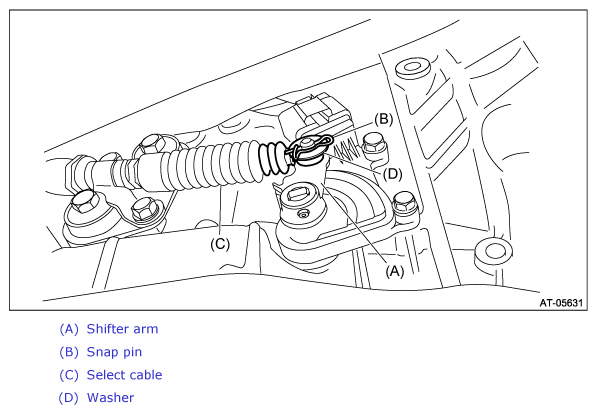

  7. Connect the select cable, and install the washer and snap pin.

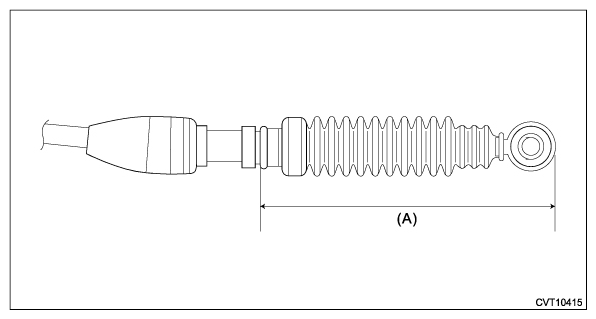

    CAUTION: Do not apply excessive load while holding the part (A).
    G12476709Courtesy of SUBARU OF AMERICA, INC.
    G12476710Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Connect the battery ground terminal.
  10. Check the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Inhibitor Switch>INSPECTION .
