Front Reduction Driven Gear: Disassembly

  1. Remove the front reduction driven shaft from the front reduction driven gear.

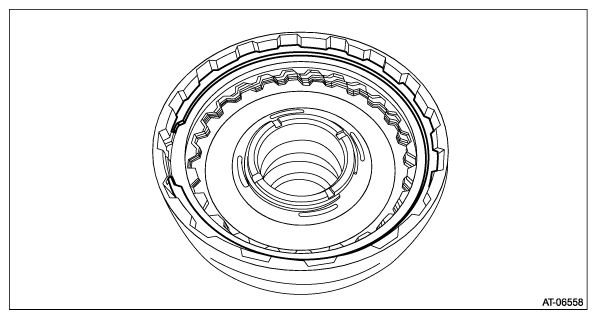

  2. Remove the snap ring.
    G12477067Courtesy of SUBARU OF AMERICA, INC.

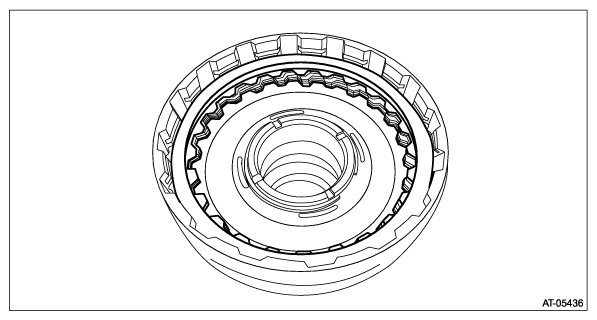

  3. Remove the retaining plate, drive plate, driven plate and dish plate.
    G12477068Courtesy of SUBARU OF AMERICA, INC.

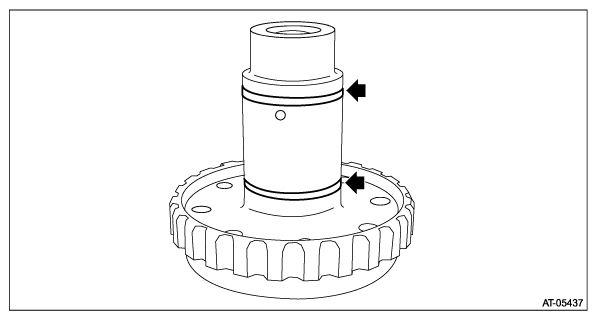

  4. Remove the seal ring from front reduction driven shaft.
    G12477069Courtesy of SUBARU OF AMERICA, INC.

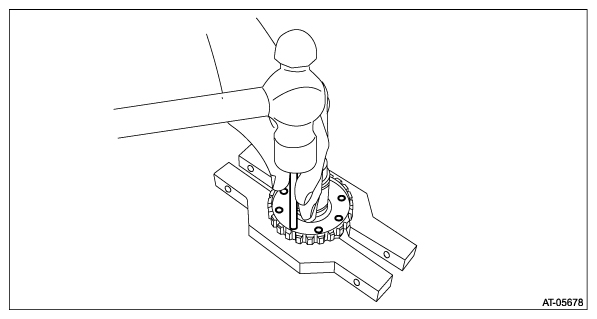

  5. Remove the ball bearing, while tapping the entire circumference around the ball bearing outer race a little at a time through the front reduction driven shaft hole using the round bar with diameter of 7 mm (0.28 in).
    G12477070Courtesy of SUBARU OF AMERICA, INC.
