Front Reduction Drive Gear: Assembly

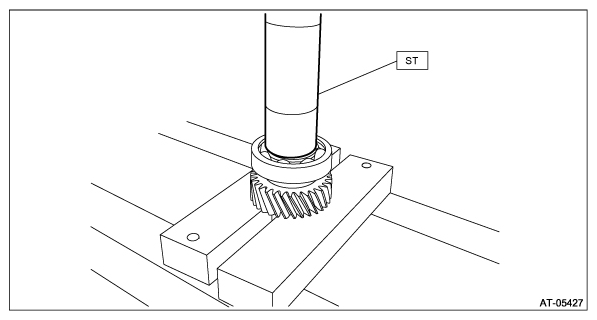

  1. Using the ST, install the ball bearing to front reduction drive gear.
    NOTE: Use a new ball bearing.

    ST 18651AA000 INSTALLER

    G12477061Courtesy of SUBARU OF AMERICA, INC.

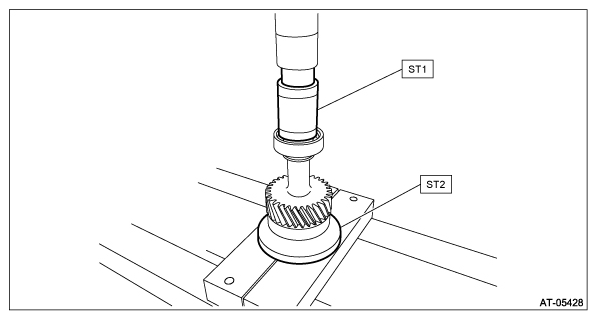

  2. Using ST1 and ST2, install the ball bearing to front reduction drive gear.
    NOTE: Use a new ball bearing.

    ST1 499757002 INSTALLER

    ST2 398177700 INSTALLER

    G12477062Courtesy of SUBARU OF AMERICA, INC.

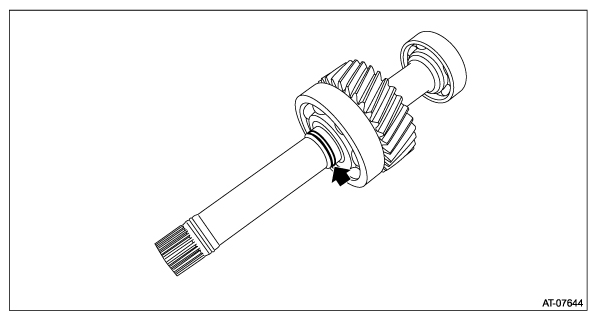

  3. Install the seal rings.
    NOTE:
    • Use new seal rings.
    • When installing the seal rings, do not expand the seal rings too much.
    • Install the O-ring when installing the torque converter assembly.
    G12477063Courtesy of SUBARU OF AMERICA, INC.
