Differential Case Assembly

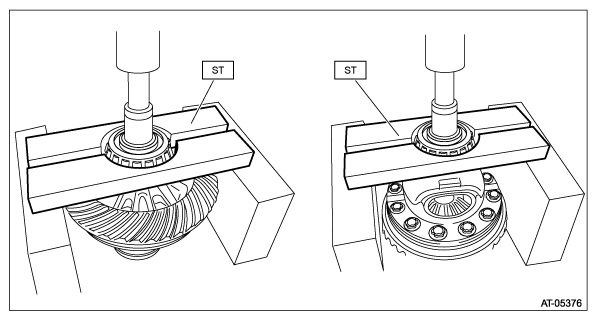

Remove the taper roller bearing using the ST.
ST 498077000 REMOVER

Courtesy of SUBARU OF AMERICA, INC.

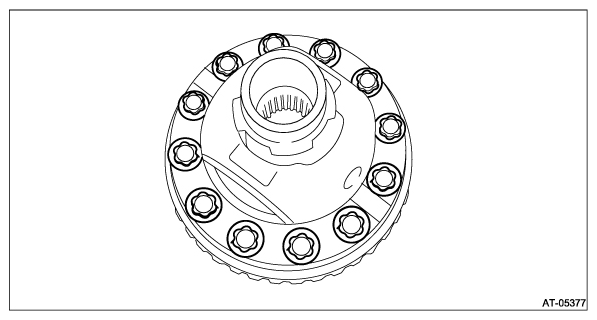

Remove the hypoid driven gear mounting bolt using the ST.
ST 18270KA020 SOCKET (E20)

Courtesy of SUBARU OF AMERICA, INC.

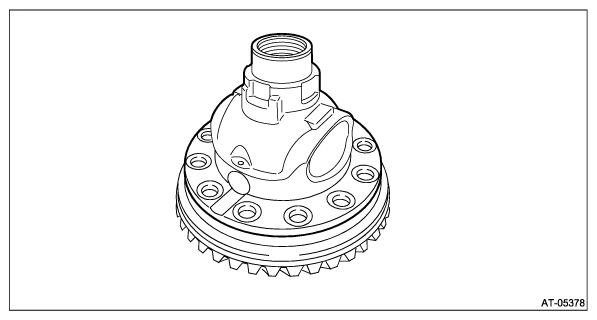

Remove the differential case (LH).

Courtesy of SUBARU OF AMERICA, INC.

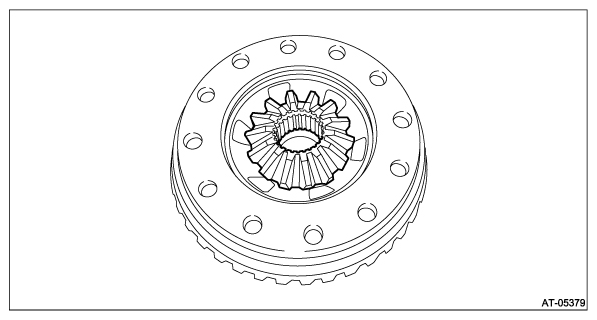

Remove the differential bevel gear and washer from differential case.

Courtesy of SUBARU OF AMERICA, INC.

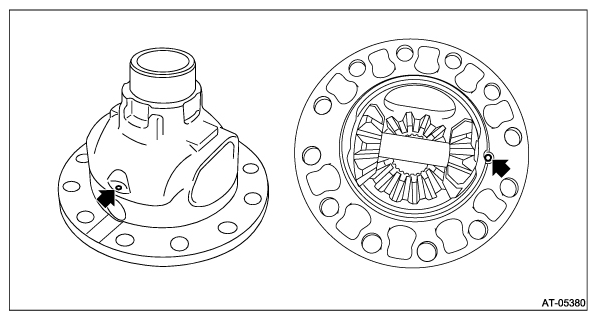

Remove the straight pin.

Courtesy of SUBARU OF AMERICA, INC.

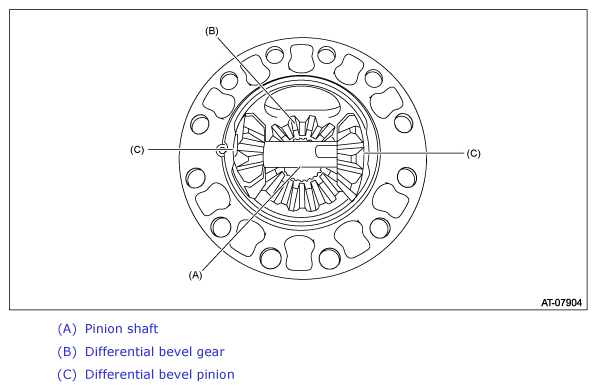

Remove the pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.

Courtesy of SUBARU OF AMERICA, INC.
