Forward Clutch Assembly: Disassembly

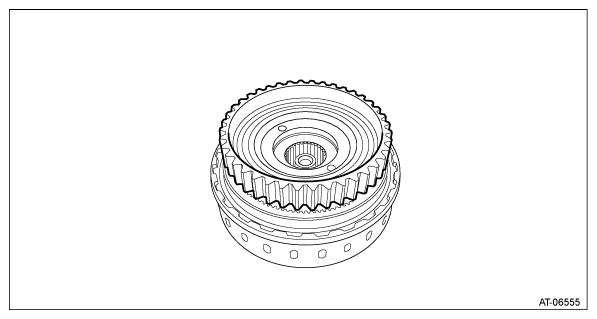

Remove the planetary carrier assembly.

Courtesy of SUBARU OF AMERICA, INC.

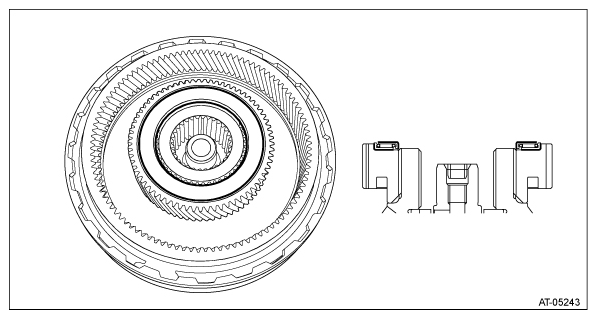

Remove the thrust needle bearing.

Courtesy of SUBARU OF AMERICA, INC.

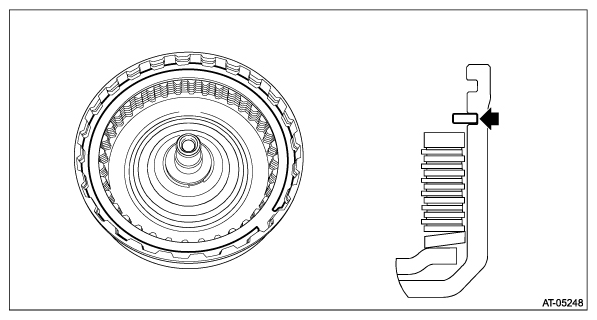

Remove the snap ring.
NOTE: Use marking or labeling to the upper snap ring for measurement of the snap ring thickness when selecting the retaining plate.

Courtesy of SUBARU OF AMERICA, INC.

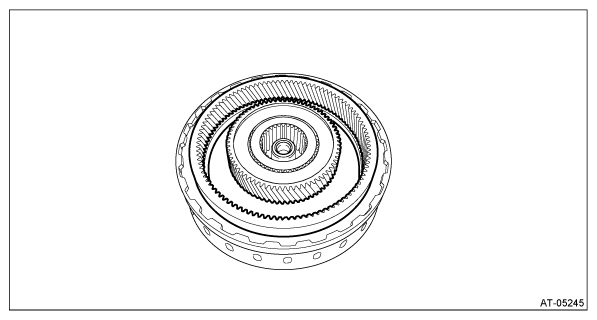

Remove the internal gear.

Courtesy of SUBARU OF AMERICA, INC.
Remove the sun gear.

Courtesy of SUBARU OF AMERICA, INC.

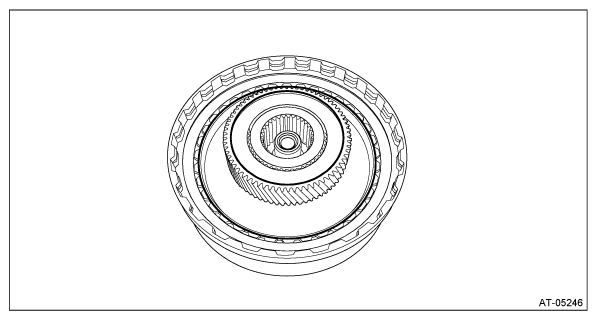

Remove the washer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust needle bearing.

Courtesy of SUBARU OF AMERICA, INC.

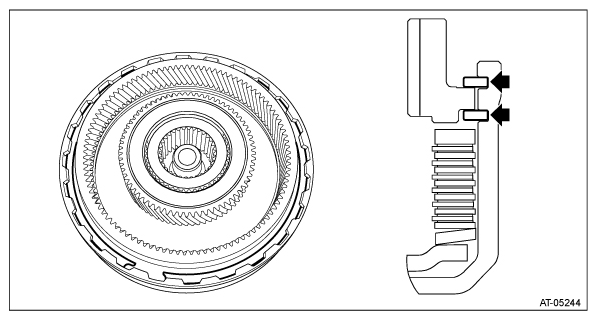

Remove the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

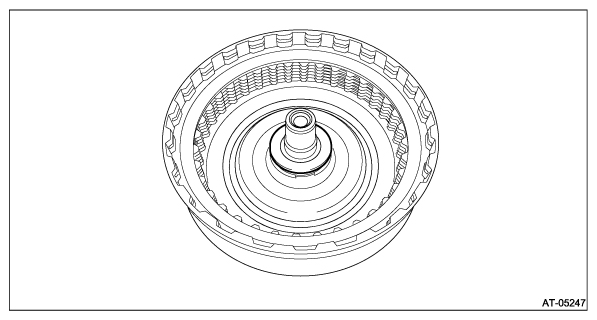

Remove the retaining plate, drive plate, driven plate and dish plate.

Courtesy of SUBARU OF AMERICA, INC.

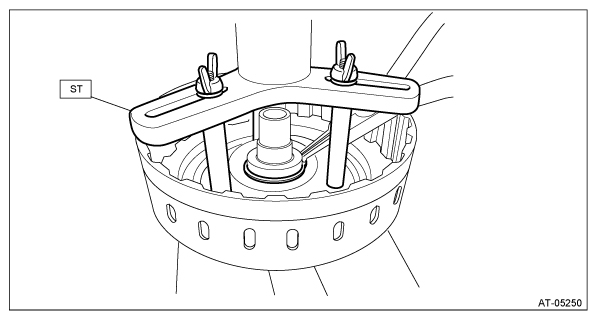

Using the ST, remove the snap ring.
ST 18762AA000 or 18762AA001 COMPRESSOR SPECIAL TOOL

Courtesy of SUBARU OF AMERICA, INC.

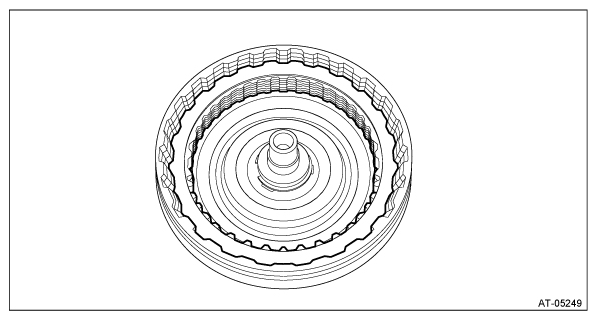

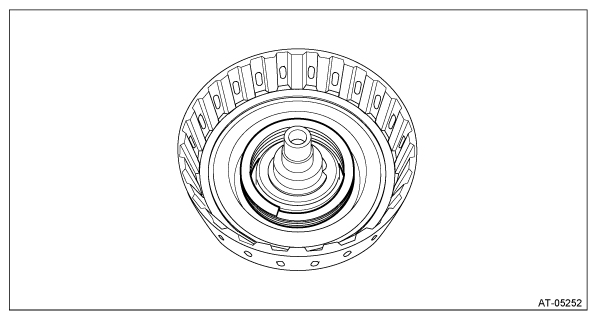

Remove the forward clutch piston retainer.

Courtesy of SUBARU OF AMERICA, INC.

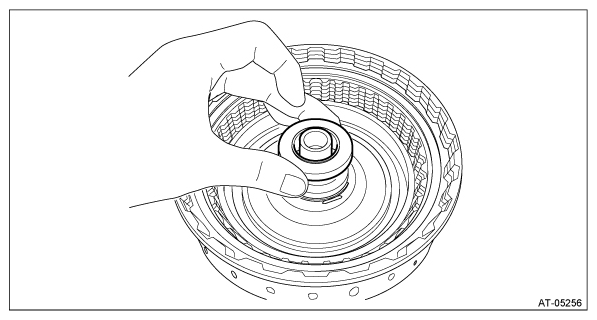

Remove the return spring.

Courtesy of SUBARU OF AMERICA, INC.

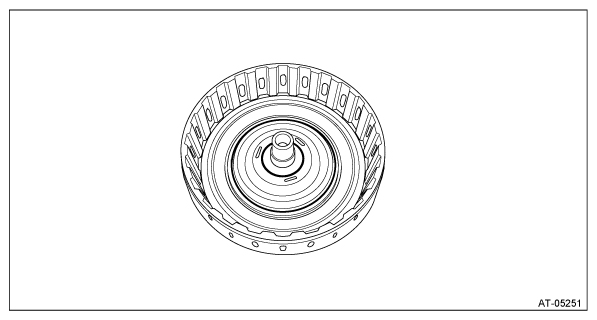

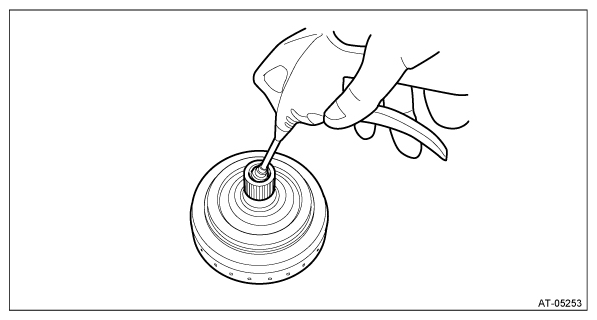

Remove the forward clutch piston by blowing compressed air intermittently from end of forward clutch drum.
