Converter Case: Disassembly

  1. Remove the CVTF cooler pipe COMPL.

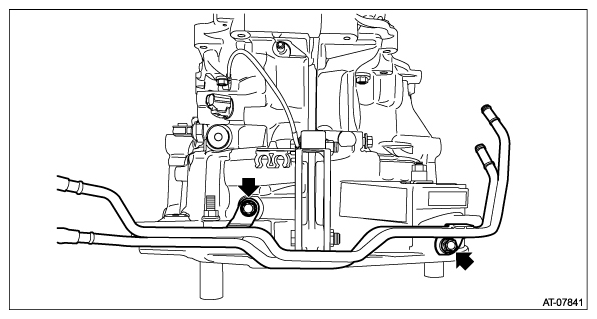

    G12477081Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the pitching stopper bracket and transmission radio ground cord, if mounted.
  3. Remove the oil drain plug and overflow drain plug. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Differential Gear Oil>REPLACEMENT .
  4. Remove all plugs.

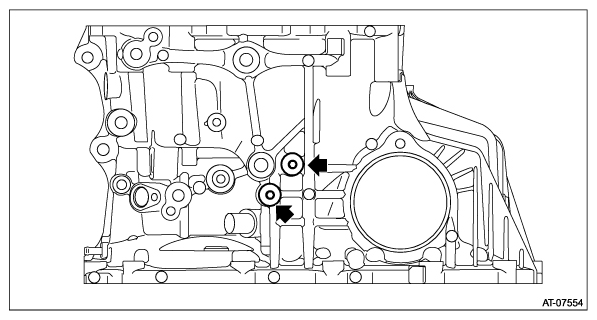

    G12477082Courtesy of SUBARU OF AMERICA, INC.
