Converter Case Cover: Disassembly

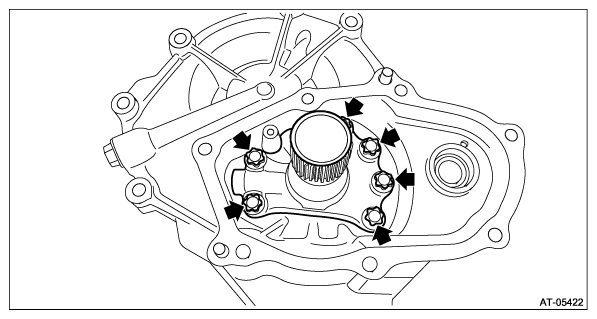

  1. Using ST, remove the center support COMPL. (Bolt fixing type)

    ST 18270KA010 SOCKET (E16)

    G12477050Courtesy of SUBARU OF AMERICA, INC.

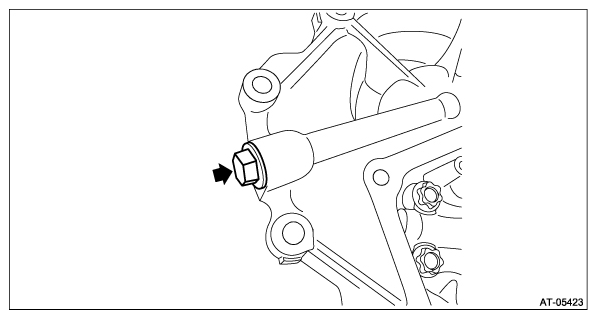

  2. Remove the plug and O-ring.
    G12477051Courtesy of SUBARU OF AMERICA, INC.
