Electrical Specification
CAUTION:
Never remove the occupant detection control module, occupant detection sensor or seat frame because they are integrated into one unit.

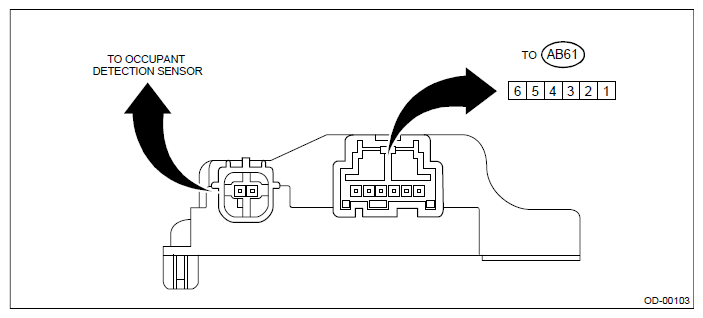

| Terminal No. | Terminal name | Input/Output value | Note |
|---|---|---|---|
| 1 | Buckle switch (+) | 0 - IG voltage | When buckle switch is ON |
| 2 | Buckle switch (-) | 0 V | Switch ground |
| 3 | Not used | - | - |
| 4 | Airbag Control Module communication (-) | - | - |
| 5 | Airbag Control Module communication (+) | - | - |
| 6 | IG power supply | 8 - 16 V | When IG switch is ON |
NOTE:
Occupant detection sensor signal is unmeasurable.
