Section 9 (Engine Cooling System (H4DO)): Radiator: Installation

WARNING: This page is about a different variant/trim than selected.

Attach the radiator lower cushion to the radiator lower bracket.

Courtesy of SUBARU OF AMERICA, INC.

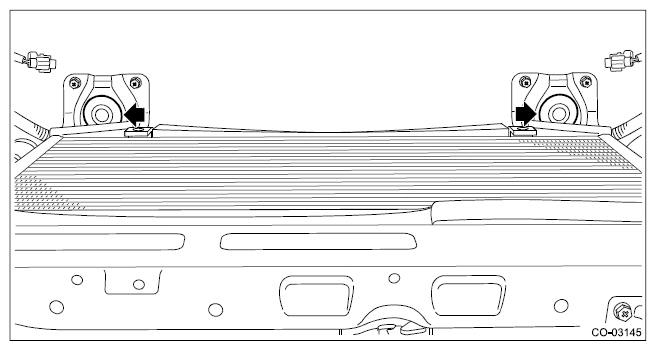

Install the radiator to vehicle.
NOTE: Make pins on the lower side of radiator be fitted into the radiator lower cushions.

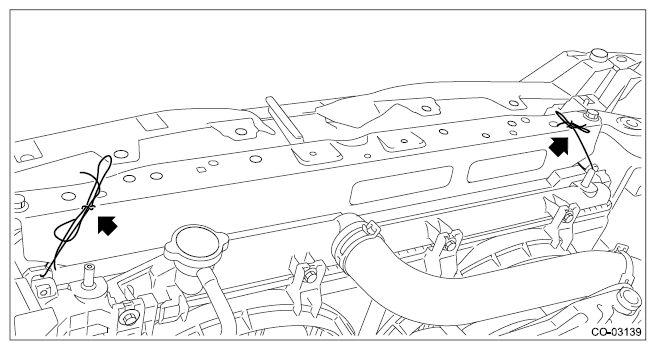

Remove the ropes or other means used to secure the condenser to the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

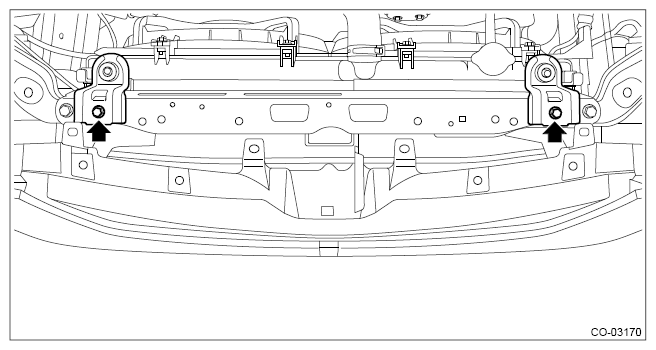

Install the bolts at the top of the condenser.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5. ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

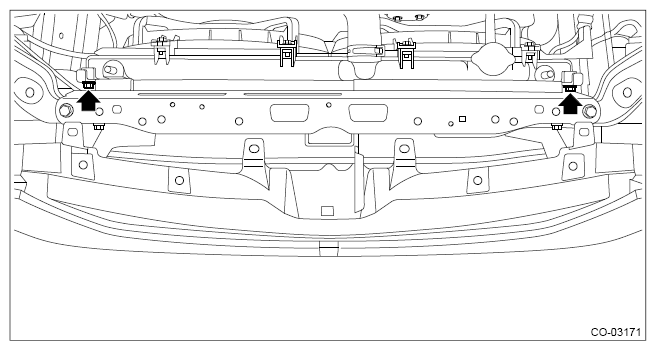

Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

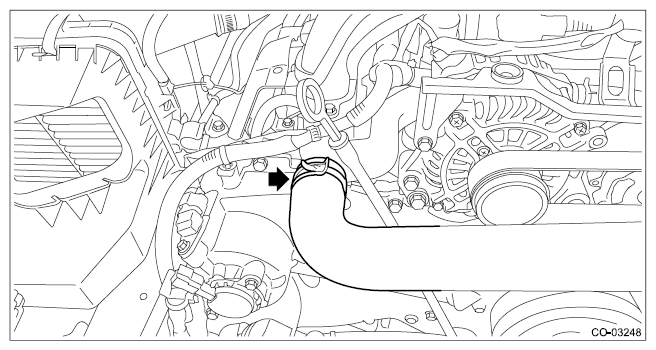

Connect the radiator inlet hose to the water pipe assembly.

Courtesy of SUBARU OF AMERICA, INC.

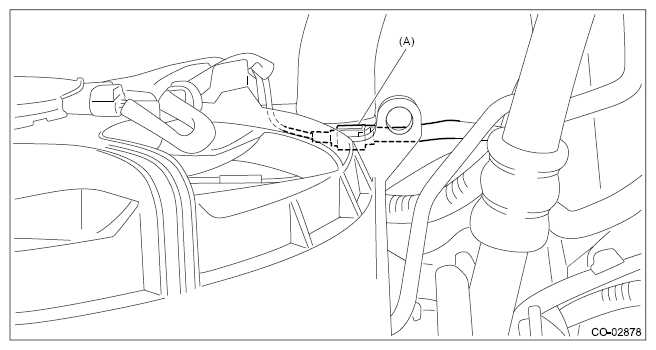

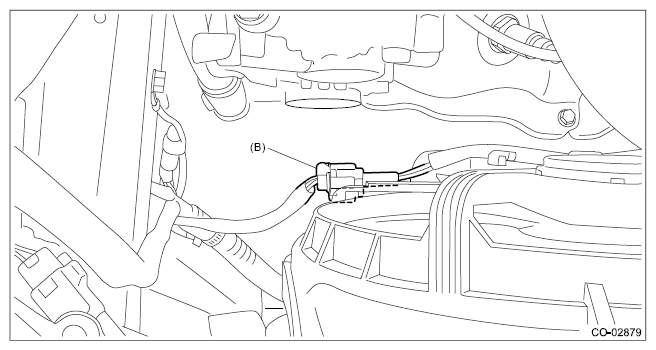

Connect the connector (A) to the main fan motor assembly and the connector (B) to the sub fan motor assembly.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.

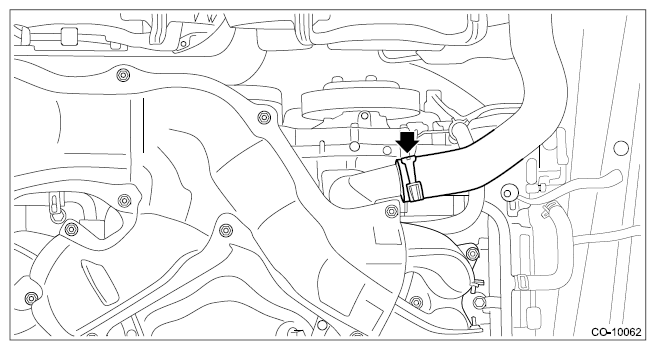

Connect the radiator outlet hose to thermostat cover.

Courtesy of SUBARU OF AMERICA, INC.

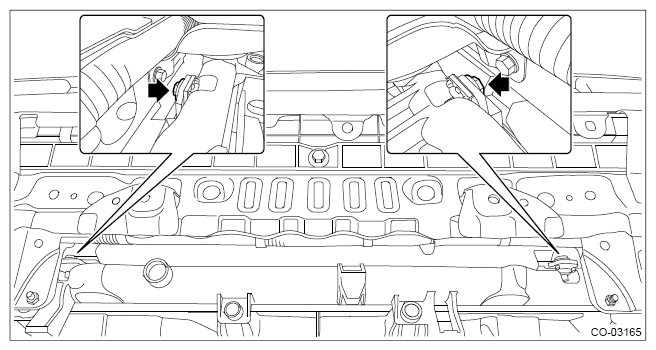

Temporarily tighten the bolts a the bottom of the condenser.

Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>INSTALLATION .
Lower the vehicle.

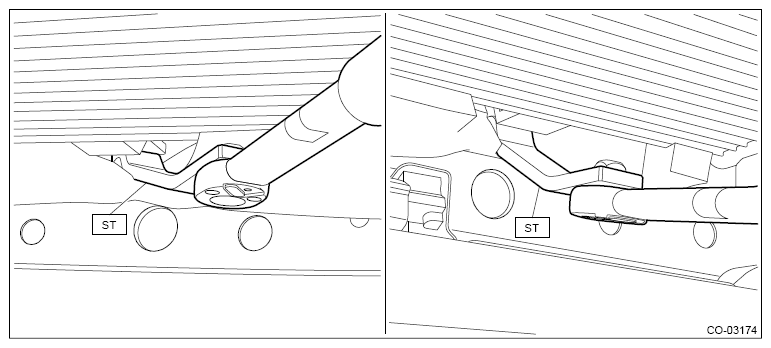

Tighten the bolts at the bottom of the condenser using the ST.

ST 73099SG000 SPECIAL TOOL CONDENSER

Tightening torque:

Calculation formula

T = L/(100 mm (3.94 in) +L) x 7. N.m (0.8 kgf-m, 5. ft-lb)

T: Tightening torque
L: Effective length of torque wrench

NOTE: If the effective length of the torque wrench used is unknown, consult the manufacturer of the torque wrench.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

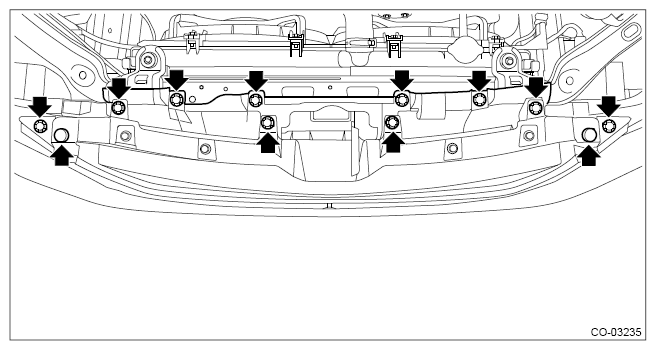

Install the clips to the grille bracket and front bumper and install the grille bracket.

Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank. Ref. to COOLING (H4DO)>Reservoir Tank>INSTALLATION .
Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>INSTALLATION .

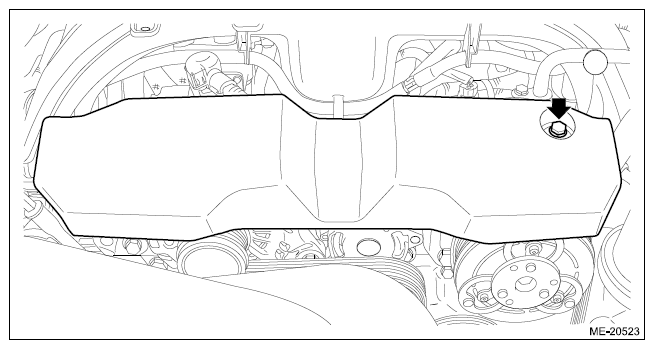

Install the V-belt cover.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. Ref. to NOTE>NOTE>BATTERY .
Fill engine coolant. Ref. to COOLING (H4DO)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
