High-Pressure Fuel Delivery Pipe Assembly

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground cable from battery.
  2. Remove the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>REMOVAL .
  3. Remove the fuel pipe insulator No. 1. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>REMOVAL>FUEL PIPE INSULATOR NO. 1 .
  4. Remove the fuel pipe insulator No. 2. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>REMOVAL>FUEL PIPE INSULATOR NO. 2 .
  5. Remove the fuel pipe insulator No. 3. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>REMOVAL>FUEL PIPE INSULATOR NO. 3 .

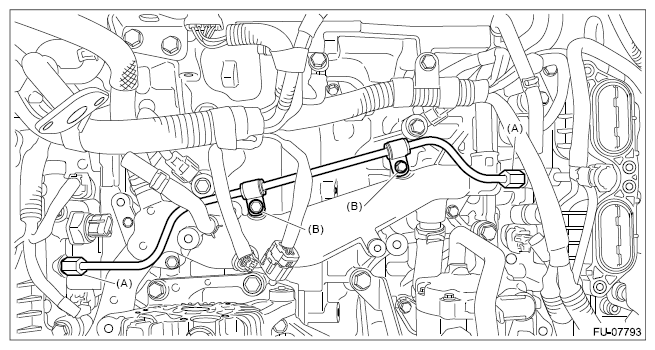

  6. Remove the flare nut (A) and bolt (B), and then remove the high-pressure fuel delivery pipe assembly.
    G12508965Courtesy of SUBARU OF AMERICA, INC.
