Fuel Delivery and Evaporation Lines: Removal

Courtesy of SUBARU OF AMERICA, INC.

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION: Be careful not to spill fuel.

1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel>PROCEDURE>RELEASING OF FUEL PRESSURE .
2. Open the fuel filler lid and remove the fuel filler cap.
   NOTE: This operation is required to release the inner pressure of the fuel tank.
3. Remove the floor mat. Ref. to EXTERIOR/INTERIOR TRIM>Floor Mat>REMOVAL .

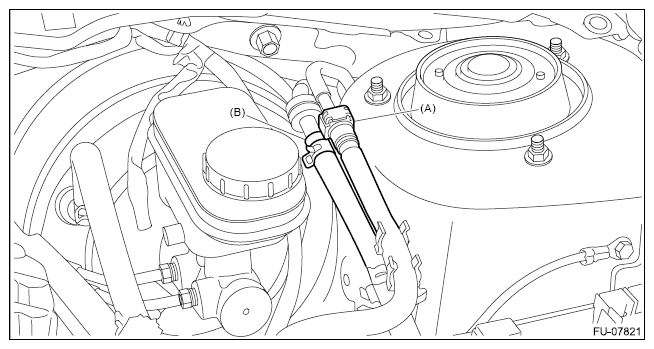

4. In the engine compartment, disconnect the fuel delivery tube (A) and evaporation hose (B).
   CAUTION:

   • Be careful not to spill fuel.
   • Catch the fuel from the tubes using a container or cloth.

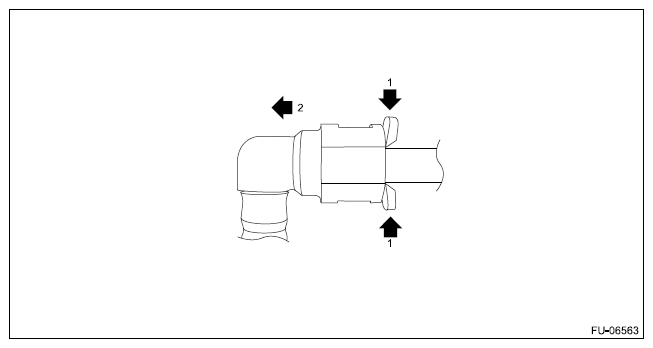

   NOTE: Disconnect the quick connector as shown in the figure.

   Courtesy of SUBARU OF AMERICA, INC.

   Courtesy of SUBARU OF AMERICA, INC.

5. Remove the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Tank>REMOVAL .
6. Disconnect the quick connector, and remove the fuel delivery tube and jet pump tube from the fuel tank.
   CAUTION:

   • Be careful not to spill fuel.
   • Catch the fuel from the tubes using a container or cloth.

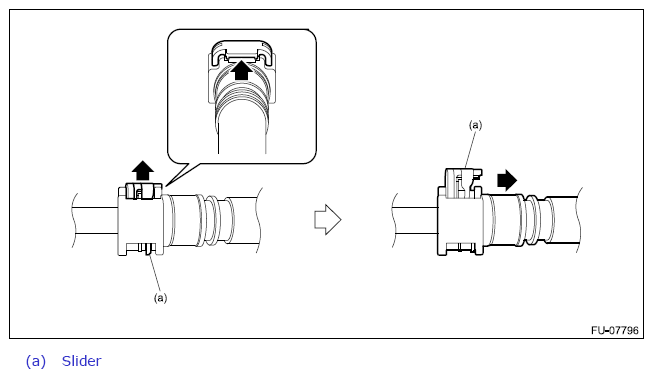

   NOTE: Disconnect the quick connector as shown in the figure.

   Courtesy of SUBARU OF AMERICA, INC.

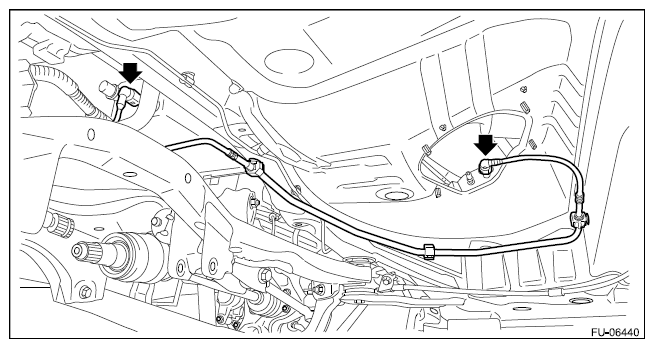

7. Disconnect the quick connector and remove the purge pipe.

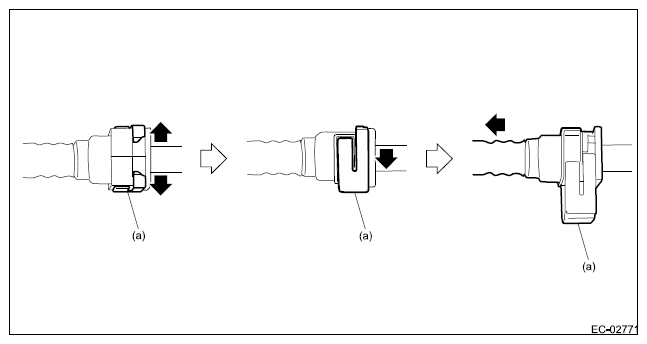

   NOTE: Disconnect the quick connector as shown in the figure.

   Courtesy of SUBARU OF AMERICA, INC.

   Courtesy of SUBARU OF AMERICA, INC.

8. Remove the body integrated unit. Ref. to SECURITY AND LOCKS>Body Integrated Unit>REMOVAL .

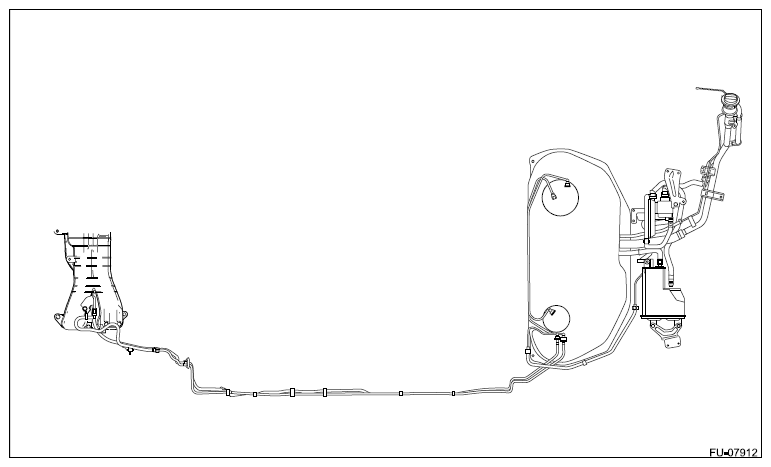

9. Remove the fuel pipe assembly from vehicle.
