Power Amplifier: Removal

NOTE: Remove the power amplifier assembly after sliding the front seat LH back and forth as necessary.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.

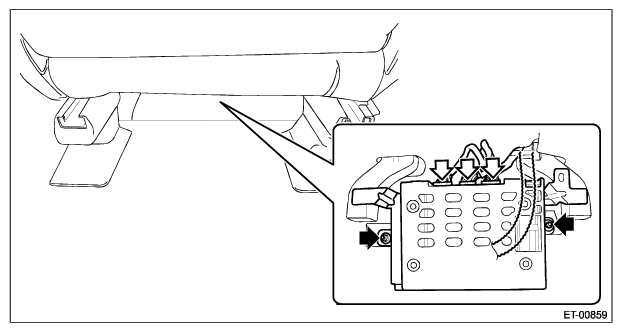

  2. Remove the power amplifier assembly.
    1. Disconnect the connector.
    2. Remove the nut and remove the power amplifier assembly.
      G12515537Courtesy of SUBARU OF AMERICA, INC.
