Wheel Arch Height

  1. Park the vehicle on a level surface.
  2. Empty the vehicle so that it is at "curb weight". (Empty the cargo room, load the spare tire, jack and service tools, and fill up the fuel tank.)
  3. Set the steering wheel in a straight-ahead position, and stabilize the suspension by moving the vehicle in a straight line for 5 m (16 ft) or more.

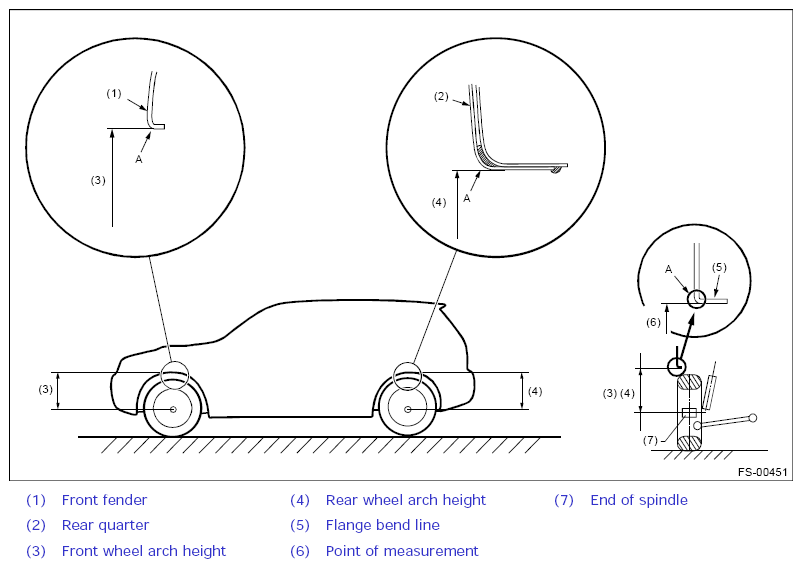

  4. Suspend a thread from the wheel arch (point "A" in the figure below) and affix at a position directly above the center of wheel.
  5. Measure the distance between the point "A" and the center of wheel.
    G12513041Courtesy of SUBARU OF AMERICA, INC.
    Wheel arch height specification mm (in) (tolerance: +12 mm-24 mm (+0.47in-0.94in ))
    Tire size P225/60R17 P225/55R18
    Front 444 (17.48)
    Rear 458 (18.03)
