Home >> Subaru >> 2018 >> Forester 2.0XT Premium >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Diagnostics - Introduction) (H4DOTC) >> Electrical Component Location >> Location >> Sensor

Engine Control System (Diagnostics - Introduction) (H4DOTC): Electrical Component Location: Location: Sensor

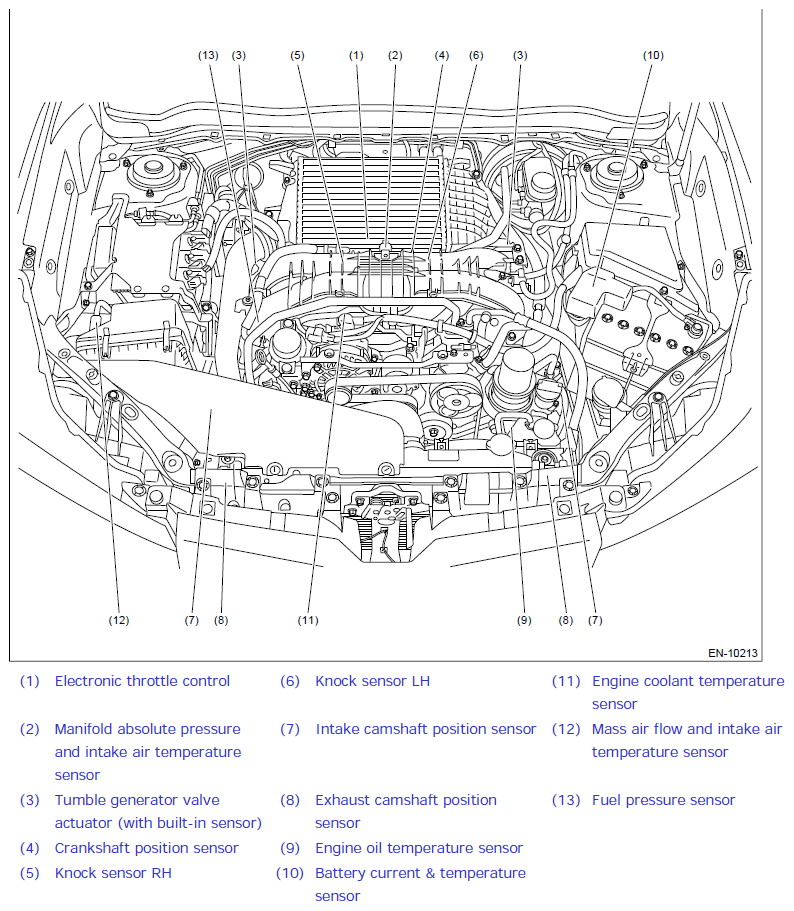

G12519080Courtesy of SUBARU OF AMERICA, INC.

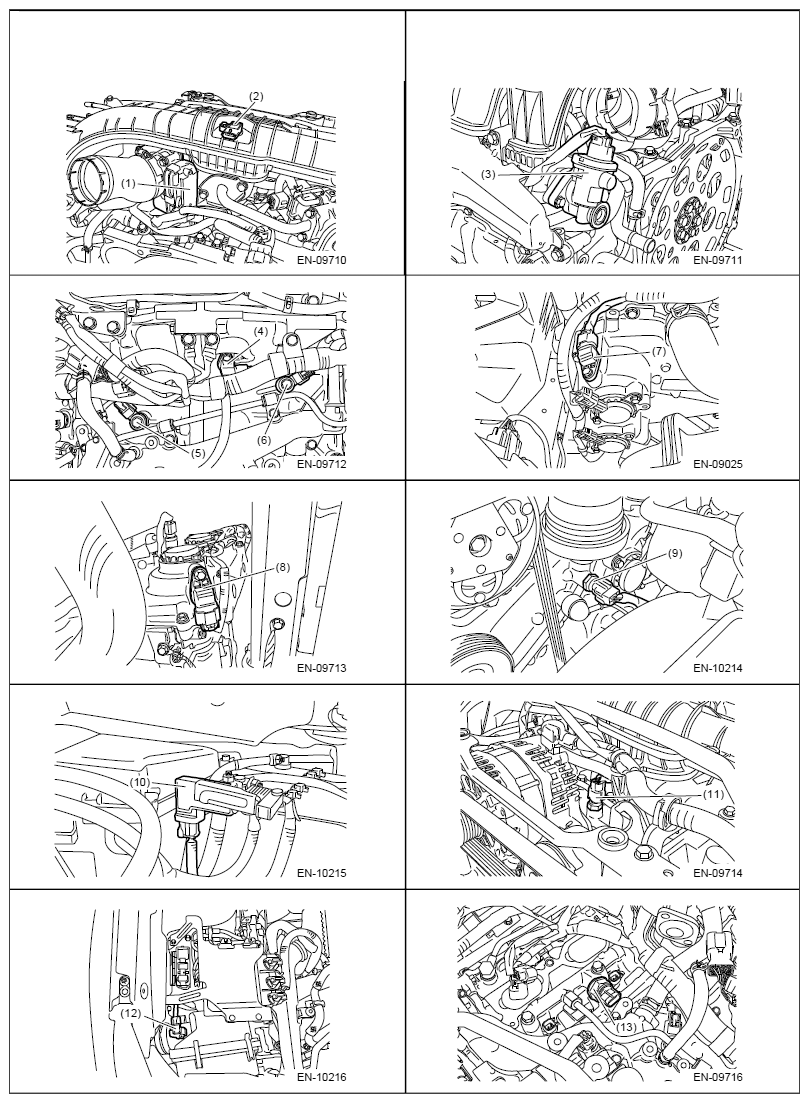

G12519081Courtesy of SUBARU OF AMERICA, INC.

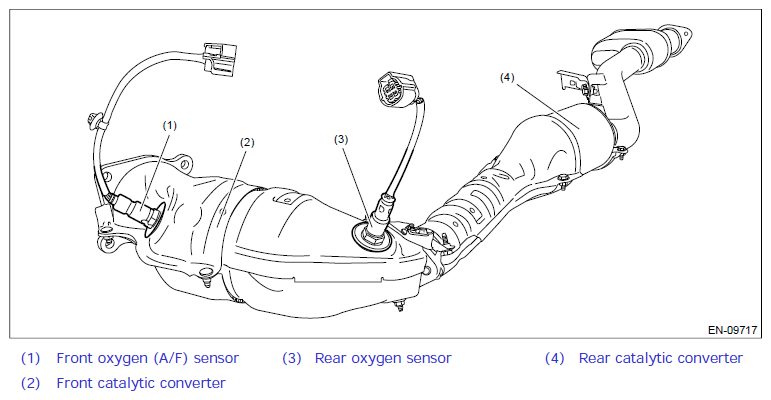

G12519082Courtesy of SUBARU OF AMERICA, INC.

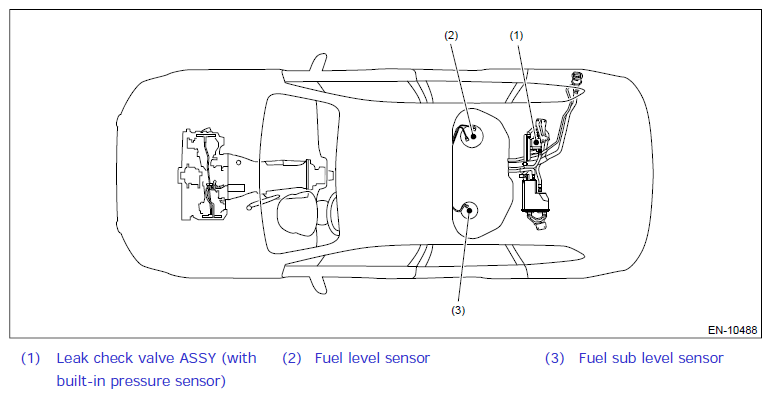

G12519083Courtesy of SUBARU OF AMERICA, INC.

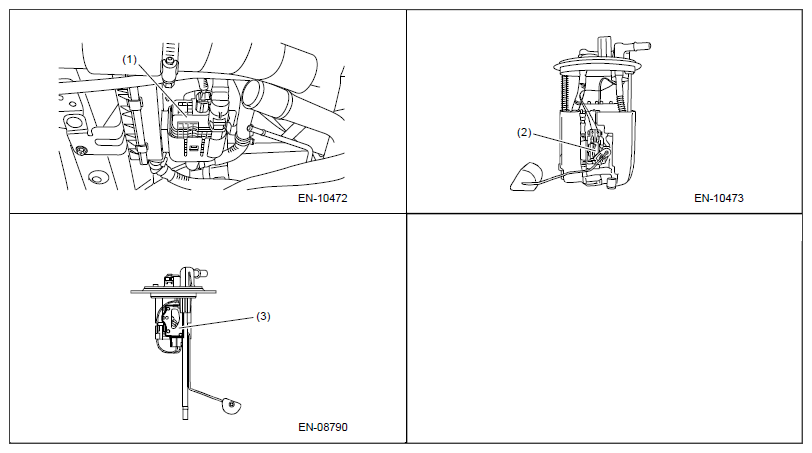

G12519084Courtesy of SUBARU OF AMERICA, INC.
