Drive Cycle O
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P0441 | EVAP SYSTEM (CPC) INCORRECT PURGE FLOW | - | 2 |
WARNING:
When performing drive cycle Ω on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
Diagnostic procedure:

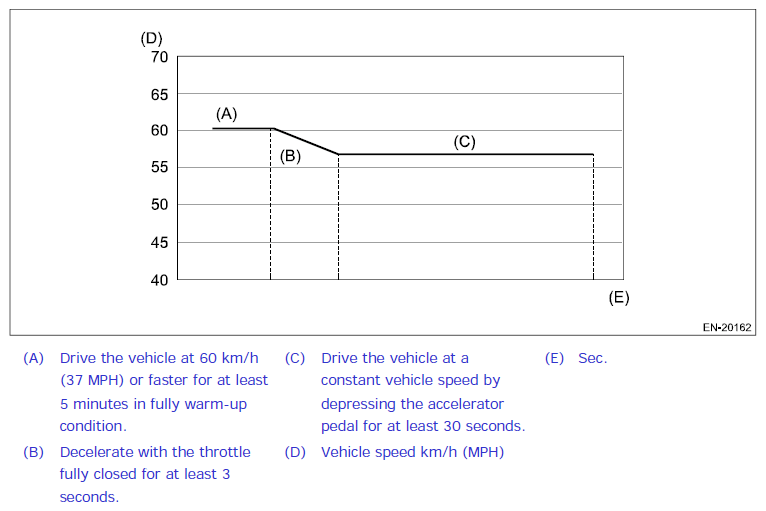

- Drive according to the drive pattern described below.
- Park the vehicle on a safe place.NOTE: Driving method while vehicle is driven to a stop at safe place is not restricted.
- With the vehicle idling, read the temporary diagnostic code of DTC using Subaru Select Monitor or general scan tool.NOTE:
- For detailed operation procedures, refer to "Read Diagnostic Trouble Code (DTC)". Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>READ DIAGNOSTIC TROUBLE CODE (DTC) .
- In the step 3), if the DTC is not displayed on the Subaru Select Monitor or general scan tool display screen, the trouble is resolved.
