RH Side

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
  2. Remove the engine control module (ECM). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Engine Control Module (ECM)>REMOVAL .
  3. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    G12513022Courtesy of SUBARU OF AMERICA, INC.

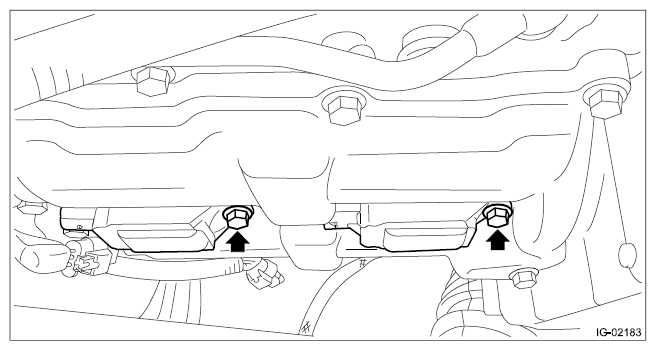

  4. Remove the ignition coil.
    G12513023Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spark plug with a spark plug socket.
