General Description
>>
Component With Torque Specifications
>>

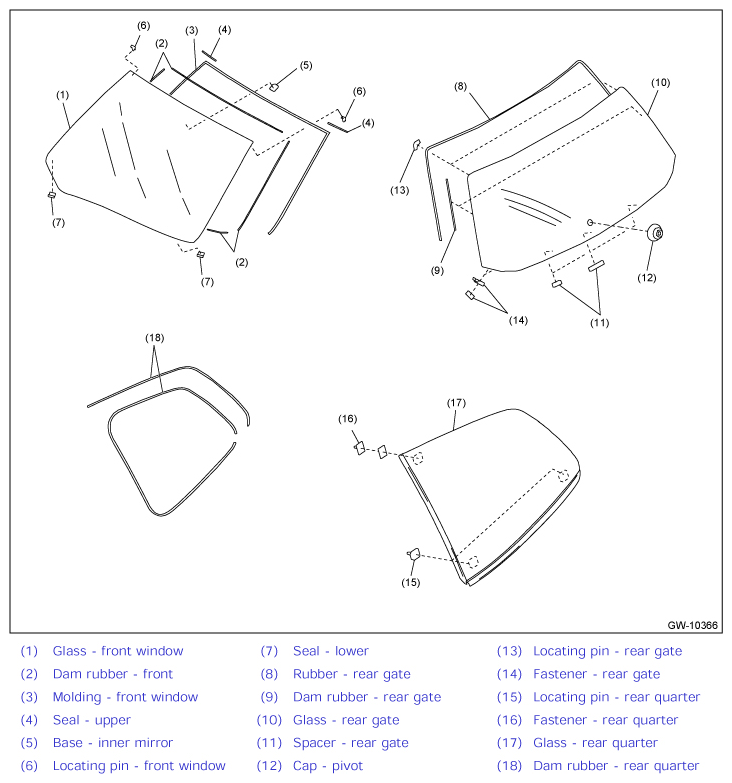

Fixed Glass
Fixed Glass
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
The base - inner mirror and the locating pin - front window cannot be removed from the glass - front window.
Courtesy of SUBARU OF AMERICA, INC.
