Clutch Assembly

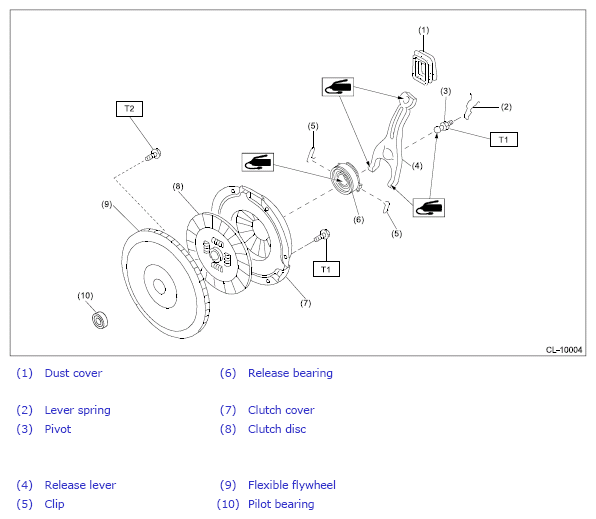

Fig 1: Locating Clutch Assembly Components
G12395053Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: Ref. to  CLUTCH SYSTEM>Flywheel>INSTALLATION .
