CROSSTREK Model

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

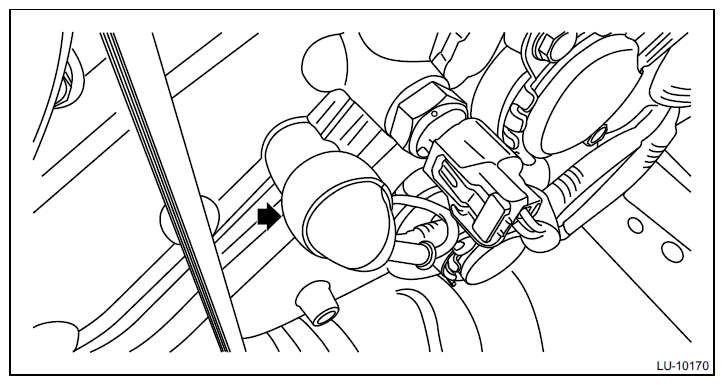

  2. Remove the rubber cap and disconnect the terminal.
    G12395918Courtesy of SUBARU OF AMERICA, INC.

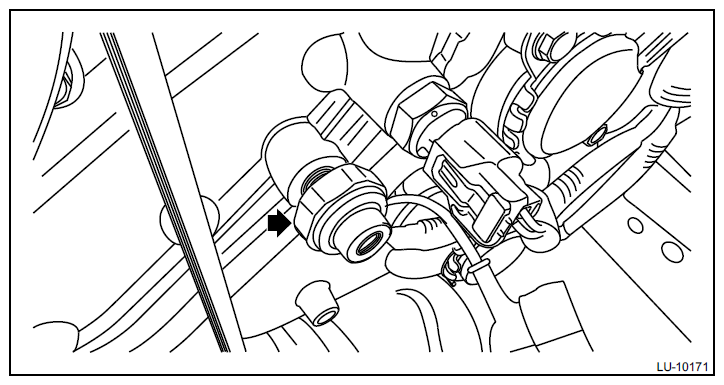

  3. Remove the oil pressure switch.
    CAUTION: Catch the engine oil using cloth to prevent it from splashing.
    G12395919Courtesy of SUBARU OF AMERICA, INC.
  4. Remove seal material from the oil pressure switch and the thread portions of the chain cover.
