Transfer Driven Gear: Disassembly

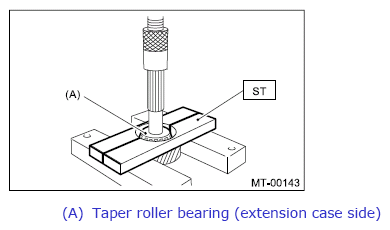

Using the ST, remove the taper roller bearing (extension case side).
Special tool:

ST: 498077000 REMOVER

Courtesy of SUBARU OF AMERICA, INC.

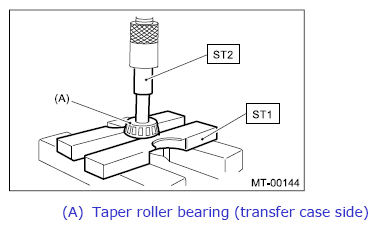

Using ST1 and ST2, remove the taper roller bearing (transfer case side).
Special tool:

ST1: 498077000 REMOVER

ST2: 899864100 REMOVER

Courtesy of SUBARU OF AMERICA, INC.
