Transfer Driven Gear: Assembly

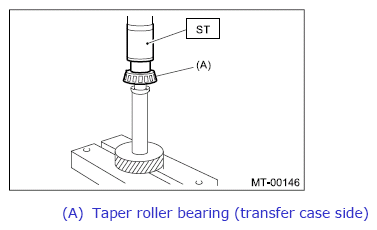

Using the ST, install the taper roller bearing (transfer case side).
CAUTION:
- Do not apply a load in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
- Be careful when handling, because the outer race and inner race of the taper roller bearing are used as a set.
Special tool:

ST: 927640000 INSTALLER

Courtesy of SUBARU OF AMERICA, INC.

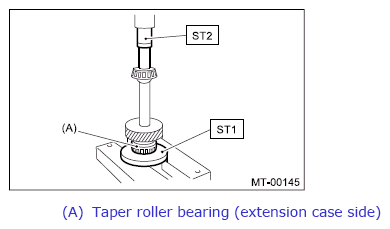

Using the ST, install the taper roller bearing (extension case side).
CAUTION:
- Do not apply a load in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
- Be careful when handling, because the outer race and inner race of the taper roller bearing are used as a set.
Special tool:

ST1: 498175500 INSTALLER

ST2: 899864100 REMOVER

Courtesy of SUBARU OF AMERICA, INC.
